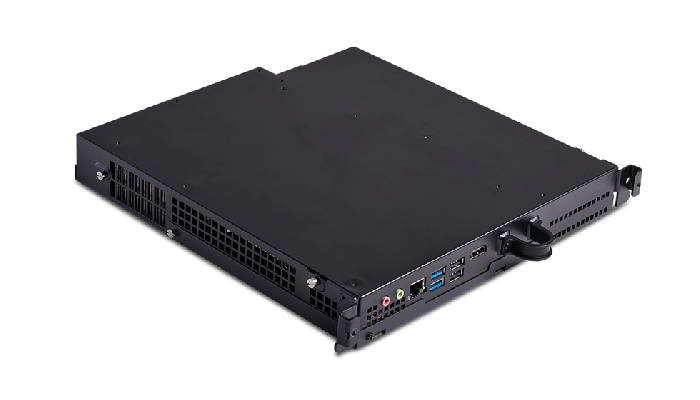

Windows 7 Computer Modules (ECMG3) - for IDS 02-Series (Discontinued October 2019)

Spécifications

• Technique

  ---

  Référence(s)

  i3-6100 ECMG3 - Windows 7 - Elo P/N: E400775
  i5-6500 ECMG3 - Windows 7 - Elo P/N: E401365
  i7-6700 ECMG3 - Windows 7 (with vPro) - Elo P/N: E401962

  Compatible with
  3202L TouchPro and IR
  4202L TouchPro and IR
  4602L TouchPro and IR
  5502L TouchPro and IR
  5551L IR
  7001LT IR

  Couleur du boîtier

  Noir

  Processeur

  Intel Core i3-6100 Processor:
  (3M Cache, 3.70 GHz)
  3 MB Intel Smart Cache
  8 GT/s Direct Media
  Interface 3 (DMI3)

  Intel Core i5-6500 Processor:
  (6M Cache, up to 3.60 GHz)
  6 MB Intel Smart Cache
  8 GT/s Direct Media
  Interface 3 (DMI3)

  Intel Core i7-6700 Processor (vPro):
  (8M Cache, up to 4.00 GHz)
  8 MB Intel® Smart Cache
  8 GT/s Direct Media
  Interface 3 (DMI3)

  Jeu de puces

  i3 & i5: Intel H110 Chipset
  i7: Intel Q170 Chipset

  Carte graphique

  Intel HD Graphics 530

  BIOS

  AMI

  Mémoire vive (RAM)

  i3 & i5: 4 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots (Expandable to 32 GB maximum* on 2 slots)

  i5 Model (E458919): 8 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots (Expandable to 32 GB maximum* on 2 slots)

  i7: 8 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots (Expandable to 32 GB maximum* on 2 slots)

  *Maximum memory using 2 slots.

  Stockage

  128 GB 2.5” SATA Solid State Drive (SSD)

  i5 Model (E458919) / i7 Model (E459109) - 256 GB 2.5” SATA Solid State Drive (SSD)

  GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

  Maximum/emplacement

  Expandable up to 16GB maximum, SO-DIMM DDR4-2400 per slot

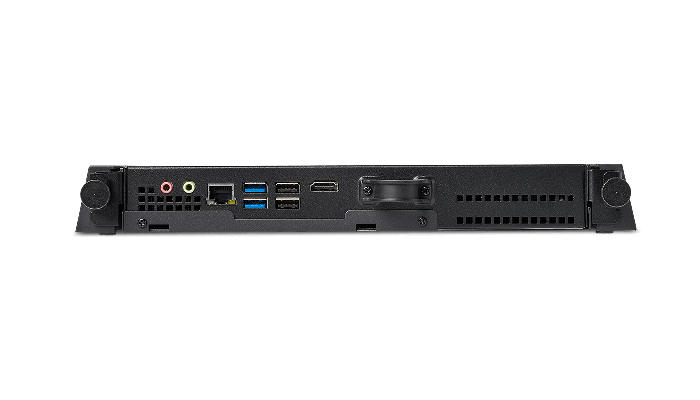

  Ports USB

  i3 & i5: 2 x USB 2.0 Type A, 2 x USB 3.0 Type A
  i7: 4 x USB 3.0 Type A

  Port Ethernet

  1 x LAN RJ45

  Ports audio

  1 x 3.5 mm Line out
  1 x 3.5 mm MIC in

  Sortie vidéo

  1 x HDMI (UHD capable)

  Systèmes d'exploitation

  Windows Pro 7*

  Langues SE

  Windows 7: 35 language groups: Arabic, Brazilian Portuguese, Bulgarian, Chinese (Simplified), Chinese (Traditional), Chinese (Hong Kong), Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hebrew, Hindi, Hungarian, Italian, Japanese, Korean, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian Latin, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish, Ukrainian

  Alimentation électrique

  Internal power supply module included

  Dimensions

  power module + computer module: 11.81” x 16.85” x 1.46” / 300mm x 428mm x 37mm

  Dimensions du colis d’expédition

  power module + computer module: 16.5” x 21.0” x 5.12” / 419 mm x 535mm x 130mm

  Poids (non emballé)

  6.88 lbs / 3.12kg

  Poids (emballé)

  10.47 lbs / 4.75 kg

  Température de fonctionnement

  0°C to 40°C / 32°F to 104°F

  Température de stockage

  -20°C to 60°C / -4°F to 140°F

  Humidité

  Operating: 20% to 80%
  Storage: 5% to 90%

  Horloge temps réel

  Pile lithium-ion

  Temps moyen entre défaillances

  50 000 heures démontrées

  Homologations et déclarations

  UL/cUL, CB, FCC, CE, AS, NZS, VCCI

  Garantie

  3 ans

  Options de service étendues

  4 year warranty coverage - Elo P/N: E896120
  5 year warranty coverage - Elo P/N: E896322
  3 year warranty coverage + AUR - Elo P/N: E896699
  4 year warranty coverage + AUR - Elo P/N: E896903
  5 year warranty coverage + AUR - Elo P/N: E897104

  Contenu du colis

  Computer Module
  QIG
  Screws
  VESA Spacer for IDS02

  Couverture du produit en option

  On Site Exchange included in Continental US only

  *Licence Windows 7

  Select Windows 7 systems (excluding POS 7 systems) are preinstalled with Windows 7 and come with a license for Windows 10 at no additional charge. If your system has a Windows 10 license sticker, then your system includes this feature and, subject to the licensing terms for the Windows software, you may temporarily use the loaded Windows version before upgrading.
