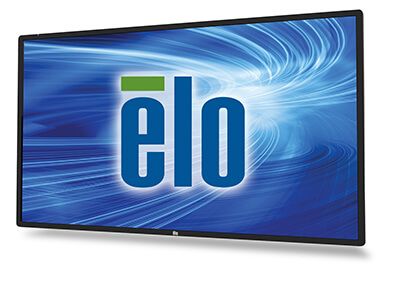

5501L 55" Interactive Digital Signage (Discontinued February 2016)
Comment acheter

Overview

The 5501L Interactive Digital Signage display combines an optical multi-touch touchscreen with a professional-grade, large format display in a slim, integrated package. For retail, hospitality, commercial real estate, education, corporate meeting rooms or lobbies and other commercial applications, the large wide-screen format offers a high-quality, interactive canvas for attracting and engaging consumers. The 5501L offers system integrators and value-added resellers (VARs) a high performance solution that is easy to deploy and maintain. With a total thickness of 3.5 inches (89mm), the 5501L is compliant with the ADA requirement of less than 4" protrusion for wall-mounted products when used with a compatible wall-mount.

With a 700 nit LED panel, the 5501L is a bright, high quality display suitable for public environments. The optical touchscreen enables up to six simultaneous touches for multi-user interaction. This touch technology offers a fast and extremely sensitive response similar to the experience on mobile devices and is compatible with Microsoft® Windows® 7 and Windows 8 operating systems. The touchscreen glass is 4mm thick and is fully tempered.

Elo IDS -01 series displays are compatible with Intel's Open Pluggable Standard (OPS) for Digital Signage with an available adapter kit. Optional, high performance computer modules are available which turn the 5501L into a completely integrated all-in-one computer-without the need for any cables or additional mounting hardware.

Computer modules are available in a choice of two models: ECMG2-i3 based on a 3.3GHz Intel® Core i3 processor and HD2500 graphics and ECMG2-i5 based on a 3.6GHz Intel® Core i5 processor and HD4000 graphics.

The high performance, commercial-grade computer modules make the 5501L a reliable platform that is interoperable with most content management servers and supports optimal partitioning of locally cached and network streamed content.

Other features.
  • Compatible with Intel Open Pluggable Standard (OPS) with available adapter kit (E102270), sold separately.
  • Available with optical touchscreen technology for a sensitive multi-touch response with any input device.
  • Pure-glass touchscreen delivers crystal clear images.
  • Housed in a highly durable steel chassis for a long-life of reliable performance.
  • VESA mounting.
  • Aspect ratio 16:9
  • High Definition (PHD) 1080p (1920 x 1080 native resolution).
  • Seamless, field installable, computer module, docking integration.
  • Heat strengthened glass per ASTM C1048; UL60950 ball drop test compliant.
  • Analog VGA and HDCP-capable HDMI 1.3, video.
  • The 5501L is available worldwide with global warranties.

Spécifications

  • Technique

    Référence(s)

    Optical (USB, Clear, Americas, Asia-Pacific, EMEA) - E000677

    Couleur du boîtier

    Noir

    Technologie et fonctionnalités tactiles

    Optical - Up to 6 Touch

    Taille de l’écran (diagonale)

    Diagonale de 54.6”, matrice active TFT LCD (LED)

    Zone active

    47.6" x 26.7" / 1209 mm x 680 mm

    Format d’image

    16:9

    Résolution

    1920 x 1080

    Autres résolutions prises en charge

    640x480 60Hz
    720x480 60Hz
    720x576 50Hz
    800x600 56Hz
    1024x768 60Hz
    1280x720 50,60Hz
    1280x960 60Hz
    1280x1024 60Hz
    1366x768 60Hz (does not scale; image is centered on panel and the remaining active area is filled with black)
    1440x900 60Hz
    1680x1050 60Hz

    Angle de vision

    Horizontal: ±89° ou 178° au total / Vertical: ±89° ou 178° au total

    Nombre de couleurs

    16.7 millions

    Luminosité (standard)

    LCD Panel: 700 nits
    Optical: 630 nits

    Temps de réponse – total (standard)

    6 msec

    Taux de contraste

    4000:1

    Interface tactile

    USB: E000677

    Affichage à l’écran (OSD)

    Controls: Menu, Up, Down, Select, Power
    Settings: Brightness, Contrast, Clock, Phase, Auto-Adjust, H-position, V-position, Maintain Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Mounting, OSD H-Position, OSD V-Position, Volume, Mute, Recall Defaults, Video Source, Audio Source
    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
    Lockouts: OSD, Power Information, MDC Protocol, Support and Help, System Temperature and Exit

    Format vidéo d’entrée

    Analog VGA, HDCP-capable HDMI 1.3, Display port 1.1a

    Connecteur du signal vidéo d’entrée

    Female DE-15 for Analog VGA
    HDMI Type A receptacle Display part 1.1a Connector

    Connecteur d’entrée audio

    3.5 mm TRS jack

    Plage de signal d'entrée audio

    1 Vrms max. stereo signal (standard PC line out)

    Connecteur de sortie du casque

    3.5 mm TRS jack

    Haut-parleurs

    Internal Speakers: 4x5 W stereo speakers, Configurable for stereo in portrait or landscape

    Alimentation électrique

    Type: Internal AC

    Connecteur d’entrée

    IEC 60320 C14

    Tension d’entrée

    100-240 VAC, 50/60 Hz

    Fréquence d’entrée

    Horizontal: 31.5 - 73 kHz / Vertical: 47 - 63 Hz

    Consommation électrique (standard)

    Monitor only (at 120V/60Hz)
    ON: 122.0W; SLEEP: 13.0W; OFF: 2.0W

    Monitor only (at 230V/50Hz)
    ON: 120.0W; SLEEP: 12.0W; OFF: 2.4W

    Dimensions

    49.8" x 29.0" x 3.5" / 1265 mm x 737 mm x 89 mm

    Dimensions du colis d’expédition

    56.0" x 34.5" x 9.8" / 1422 mm x 876 mm x 249 mm

    Poids (non emballé)

    Without computer module: 94.8 lbs / 43.0 kg
    With computer module: 98.5 lbs / 44.7 kg

    Poids (emballé)

    Without computer module: 110.2 lbs / 50.0 kg
    With computer module: 114 lbs / 51.7 kg

    Température de fonctionnement

    0°C to 40°C / 32°F to 104°F

    Température de stockage

    -20°C to 50°C / -4°F to 122°F

    Humidité

    Operating: 20-80%
    Storage: 10-90%
    noncondensing

    Options de montage

    VESA 4-hole Mount per MIS-F, 600 x 600, 6mm

    Temps moyen entre défaillances

    50 000 heures démontrées

    Garantie

    3 ans

    Homologations et déclarations

    Without RFID: CB, UL, cUL, FCC Class A, CE Class A, VCCI Class A, IC, C-TICK Class A, CCC, Russia & CIS GOST, NOM, KC, BSMI, e-standby
    With RFID: UL, FCC(US) Class A, CE(Europe) Class A

    Accessoires IDS en option

    i3 3,4 GHz ECMG2 - No OS pour Série IDS 01 - Réf Elo: E001292
    i3 3,4 GHz ECMG2 - Windows 7 pour Série IDS 01 - Réf Elo: E001293
    i3 3,4 GHz ECMG2 - Windows 8.1 pour Série IDS 01 - Réf Elo: E001294
    i5 3,7 GHz ECMG2 - No OS pour Série IDS 01 - Réf Elo: E001295
    i5 3,7 GHz ECMG2 - Windows 7 pour Série IDS 01 – Réf Elo: E001296
    i5 3,7 GHz ECMG2 - Windows 8.1 pour Série IDS 01 - Réf Elo: E001297
    i7 4,0 GHz ECMG2 - No OS pour Série IDS 01 - Réf Elo: E001298
    i7 4,0 GHz ECMG2 - Windows 7 pour Série IDS 01 - Réf Elo: E001299
    i7 4,0 GHz ECMG2 - Windows 8.1 pour Série IDS 01 - Réf Elo: E001300
    Kit webcam - Réf Elo: E688656
    Adaptateur NFC - Réf Elo: E918074
    Kit OPS - Réf Elo: E102270
    Boîtier de commande OSD - Réf Elo: E483757
    Kit d’un câble de remplacement - Réf Elo: E000263
    Kit de montage mural - Réf Elo: E248743
    Wireless Adapter Key (USB) - Elo P/N: E249774

    Socle en option

    E448725
