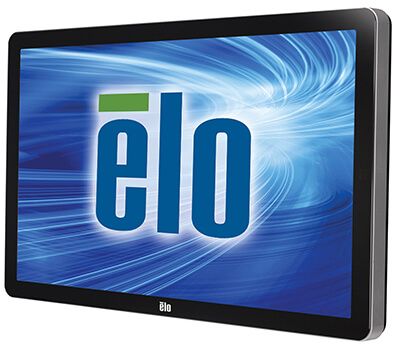

4600L 46" Touchscreen Signage (Discontinued August 2013)
Comment acheter

Overview

The 4600L IDS touch display is more than a media player and more than a consumer display. IDS touch displays enable increased customer engagement and metrics for out-of-home environments by adding an exciting new dimension to traditional broadcast digital signage - the power of touch. The 4600L offers a unique interactive display designed to enhance the touch experience. The 46-inch interactive, large-format display features a choice of industry-leading touch technologies that optimizes the touch experience for a particular usage. Housed in a highly durable steel chassis for a long-life of reliable performance, the 4600L with any of the available touchscreen technologies is an efficient display canvas for almost any commercial, public access application.

For a light, no pressure multi-touch (up to 4 touch points) experience on a pure-glass surface, optical touchscreen technology provides a crystal clear image and recognizes touch from any input device, such as a finger, gloved finger, pen, or stylus. For a sensitive, accurate touch response IntelliTouch® surface wave product technology utilizes pure-glass construction to deliver excellent imagery with high light transmissions, not affected by changes in ambient light, and supports finger, gloved hand and soft stylus activation.

The large-format, professional displays are not only attractive, but rugged enough to withstand the constant interactivity inherent in public access venues, such as retail, self-service, hospitality, transportation, education, and healthcare. Built to last in public access environments, unlike typical consumer displays, Elo touch solutions offer a longer life and a richer digital signage experience.

The IDS displays are also available in 32- and 42-inch, to fit a wide variety of configurations and uses and come in an attractively designed package well-suited for many business segments and applications. The IDS family is also available with an optional Computer Module (reference Accessories tab) in three options, ECM1, ECM2 and ECM3 to support and deliver engaging and interactive personalized content.

Other features.
  • Available with IntelliTouch surface acoustic wave reliable single touch by finger or soft stylus and optical touchscreen technology for a sensitive multi-touch response with any input device.
  • Pure-glass display surface delivers crystal clear images
  • Housed in a highly durable steel chassis for a long-life of reliable performance
  • VESA mounting with optional stand
  • Aspect ratio 16:9
  • True High Definition (HD) 1080p (1920 x 1080)
  • Seamless, field installable, computer module, docking integration
  • Heat strengthened glass per ASTM C1048; UL60950 ball drop test compliant
  • Analog VGA and HDCP-capable HDMI 1.3, video
  • Two 10W speakers

Spécifications

  • Technique

    Référence(s)

    IntelliTouch (USB, Clear, Americas, Asia-Pacific, EMEA) - E960985
    Optical (USB, Clear, Americas, Asia-Pacific, EMEA) - E536712

    Couleur du boîtier

    Noir

    Technologie et fonctionnalités tactiles

    SAW (ondes acoustiques de surface IntelliTouch®) - Touche unique
    Optical - Up to 6 Touch

    Taille de l’écran (diagonale)

    Diagonale de 46”, matrice active TFT LCD (LED)

    Zone active

    40.1" x 22.5" / 1018 mm x 573 mm

    Format d’image

    16:9

    Résolution

    1920 x 1080

    Autres résolutions prises en charge

    640x480 60Hz
    720x480 60Hz
    720x576 50Hz
    800x600 56, 60Hz
    1024x768 60Hz
    1280x720 50, 60Hz
    1280x960 60Hz
    1280x1024 60Hz
    1360x768 60Hz
    1366x768 60Hz
    1440x900 60Hz
    1680x1050 60Hz
    1920x1080 50, 60Hz

    Angle de vision

    Horizontal: ±89° ou 178° au total / Vertical: ±89° ou 178° au total

    Nombre de couleurs

    16.7 millions

    Luminosité (standard)

    LCD panel: 450 nits
    IntelliTouch: 405 nits
    Optical: 405 nits

    Temps de réponse – total (standard)

    8 msec

    Taux de contraste

    3000:1

    Interface tactile

    USB

    Affichage à l’écran (OSD)

    Controls: Menu, Up, Down, Select, Power
    Settings: Brightness, Contrast, Clock, Phase, Auto-Adjust, H-position, V-position, Maintain Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Mounting, OSD H-Position, OSD V-Position, Volume, Mute, Recall Defaults, Video Source, Audio Source
    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
    Lockouts: OSD, Power

    Ports E/S

    COM1 and COM2 - Software specific; for future use

    Format vidéo d’entrée

    Analog VGA and HDCP-capable HDMI 1.3 video

    Connecteur du signal vidéo d’entrée

    Female DE-15 for Analog VGA
    HDMI Type A receptacle for HDMI

    Connecteur d’entrée audio

    3.5 mm TRS jack

    Plage de signal d'entrée audio

    1 Vrms max. stereo signal (standard PC line out)

    Connecteur de sortie du casque

    3.5 mm TRS jack

    Signal de sortie du casque

    Delivers 90 mW of power into a 32-ohm stereo load

    Haut-parleurs

    Two 10W RMS speakers

    Alimentation électrique

    Type: Internal AC

    Connecteur d’entrée

    IEC 60320 C14

    Tension d’entrée

    100 - 240 VAC, 50 / 60Hz

    Fréquence d’entrée

    Horizontal: 32 - 80 kHz / Vertical: 48 - 62 Hz

    Consommation électrique (standard)

    Monitor only (at 100V/60Hz):
    ON, max audio: 234W
    SLEEP: 12.5W
    OFF: 3.4W

    Monitor with ECM1 Computer Module (at 100V/60Hz):
    S0 - ON, max audio: 333W
    S3 - STANDBY: 16W
    S5 - OFF: 13W

    Monitor with ECM2 Computer Module (at 100V/60Hz):
    S0 - ON, max audio: 363W
    S3 - STANDBY: 15W
    S5 - OFF: 13W

    Dimensions

    44.1" x 26.1" x 5.3" / 1120 mm x 664 mm x 135 mm

    Dimensions du colis d’expédition

    51.3" x 34.0" x 13.0" / 1304 mm x 855 mm x 330 mm

    Poids (non emballé)

    without computer module: 82.0 lbs / 37.2 kg; with computer module: 87.7 lbs / 39.8 kg

    Poids (emballé)

    without computer module: 110.2 lbs / 50.0 kg

    Température de fonctionnement

    0°C to 40°C / 32°F to 104°F

    Température de stockage

    -20°C to 50°C / -4°F to 122°F

    Humidité

    Operating: 20%-80%
    Storage: 10%-90%
    noncondensing

    Options de montage

    VESA MIS-F, 600 x 400, Y, 6, 90

    Temps moyen entre défaillances

    50 000 heures démontrées

    Garantie

    3 ans

    Homologations et déclarations

    CB, UL, cUL, FCC, CE, VCCI, IC, C-TICK, S-Mark, CCC, Russia & CIS GOST, NOM, KC, BSMI

    Optional Accessories/Peripherals

    IntelliTouch SAW Stylus pen - Elo P/N: D82064-000
    Computer Module - 2.2 GHz ECM1 Windows XP - Elo P/N: E370690
    Computer Module - 3.0 GHz ECM2 Windows XP - Elo P/N: E268268
    Computer Module - 2.2 GHz ECM1 NO OS - Elo P/N: E587119
    Computer Module - 3.0 GHz ECM2 NO OS - Elo P/N: E057911
    Computer Module - 2.2 GHz ECM1 Windows 7 - Elo P/N: E077771
    Computer Module - 3.0 GHz ECM2 Windows 7 - Elo P/N: E588755
    Computer Module - 2.5 GHz ECM3 Windows 7 - Elo P/N: E518070
    Computer Module - 2.5 GHz ECM3 NO OS - Elo P/N: E694079
    Webcam - Elo P/N: E828885 and Elo P/N: E574975
    Replacement Cable Kit - EMEA - Elo P/N: E414311
    Replacement Cable Kit - Japan - Elo P/N: E545338
    Replacement Cable Kit - Asia-Pacific - Elo P/N: E914104
    Replacement Cable Kit - North America - Elo P/N: E998924
    OSD Control Box - Elo P/N: E622897
    Wired OSD Remote - Elo P/N: E483757
    4GB RAM Kit - Elo P/N: E331130
    Stand - Elo P/N: E448725

    Accessoires IDS en option

    Télécommande filaire OSD - ELO-REMOTE-OSD-RJ45-R - Réf Elo: E483757
