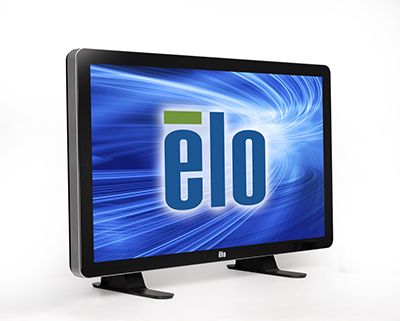

4200L 42" Interactive Digital Signage (Discontinued May 2013)
Comment acheter

Overview

The 4200L IDS display is more than a media player and more than a consumer display. IDS touch displays enable increased customer engagement and metrics for out-of-home environments by adding an exciting new dimension to traditional broadcast digital signage – the power of touch.

The 4200L offers a unique interactive display designed to enhance the touch experience. The 42-inch interactive, large-format display features a choice of industry-leading touch technologies that optimizes the touch experience for a particular usage. Housed in a highly durable steel chassis for a long-life of reliable performance, the 4200L with any of the available touchscreen technologies is an efficient display canvas for almost any commercial, public access application:

For a seamless, zero-bezel design, the innovative Acoustic Pulse Recognition (APR) touch technology delivers an elegant appearance and a responsive touch experience. Zero-bezel APR recognizes touch on virtually the entire display surface, offering a full-screen interface for navigation regardless of how the display is touched—finger, prosthetic, stylus, card or pen.

For a sensitive, accurate touch response IntelliTouch® surface wave product technology utilizes pure-glass construction to deliver excellent imagery with high light transmissions, not affected by changes in ambient light, and supports finger, gloved hand and soft stylus activation.

For a light, no pressure multi-touch (up to 4 touch points) experience on a pure-glass surface, optical touchscreen technology provides a crystal clear image and recognizes touch from any input device, such as a finger, gloved finger, pen, or stylus.The large-format, professional displays are not only attractive, but rugged enough to withstand the constant interactivity inherent in public access venues, such as retail, self-service, hospitality, transportation, education, and healthcare. Built to last in public access environments, unlike typical consumer displays, Elo touch solutions offer a longer life and a richer digital signage experience.

The IDS displays are also available in 32-and 46-inch, to fit a wide variety of configurations and uses and come in an attractively designed package well-suited for many business segments and applications. Optional Computer Module are also available (reference Accessories tab) in three options, ECM1, ECM2 and ECM3, to support and deliver engaging and interactive personalized content.

Other features.
  • Available with Zero-bezel Acoustic Pulse Recognition (APR) for an elegant appearance and sensitive touch response with virtually any touch stylus - finger, stylus, card or pen; IntelliTouch surface acoustic wave reliable single touch by finger or soft stylus and optical touchscreen technology for a sensitive multi-touch response with any input device.
  • Pure-glass display surface delivers crystal clear images
  • Housed in a highly durable steel chassis for a long-life of reliable performance
  • VESA mounting with optional stand
  • Aspect ratio 16:9
  • True High Definition (HD) 1080p (1920 x 1080)
  • Seamless, field installable, computer module, docking integration
  • Heat strengthened glass per ASTM C1048; UL60950 ball drop test compliant
  • Analog VGA and HDCP-capable HDMI 1.3, video
  • Two 10W speakers

Spécifications

  • Technique

    Référence(s)

    IntelliTouch (USB, Clear, Americas, Asia-Pacific, EMEA) - E841203
    Acoustic Pulse Recognition (USB, Antiglare, Americas, Asia-Pacific, EMEA) - E967142
    Optical (USB, Clear, Americas, Asia-Pacific, EMEA) - E505459

    Couleur du boîtier

    Noir

    Technologie et fonctionnalités tactiles

    SAW (ondes acoustiques de surface IntelliTouch®) - Touche unique
    Reconnaissance d'impulsion acoustique - Touche unique
    Optical - Up to 6 Touch

    Taille de l’écran (diagonale)

    Diagonale de 42”, matrice active TFT LCD (LED)

    Zone active

    36.6" x 20.6" / 930mm x 523mm

    Format d’image

    16:9

    Résolution

    1920 x 1080

    Autres résolutions prises en charge

    640x480 60Hz
    720x480 60Hz
    720x576 50Hz
    800x600 56, 60Hz
    1024x768 60Hz
    1280x720 50, 60Hz
    1280x960 60Hz
    1280x1024 60Hz
    1360x768 60Hz
    1366x768 60Hz
    1440x900 60Hz
    1680x1050 60Hz
    1920x1080 50, 60Hz

    Angle de vision

    Horizontal: ±89° ou 178° au total / Vertical: ±89° ou 178° au total

    Nombre de couleurs

    16.7 millions

    Luminosité (standard)

    LCD panel: 450 nits
    Acoustic Pulse Recognition: 405 nits
    IntelliTouch: 405 nits
    Optical: 405 nits

    Temps de réponse – total (standard)

    6.5 msec

    Taux de contraste

    3500:1

    Interface tactile

    USB: E841203, E967142, E505459

    Affichage à l’écran (OSD)

    Controls: Menu, Up, Down, Select, Power
    Settings: Brightness, Contrast, Clock, Phase, Auto-Adjust, H-position, V-position, Maintain Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Mounting, OSD H-Position, OSD V-Position, Volume, Mute, Recall Defaults, Video Source, Audio Source
    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
    Lockouts: OSD, Power
    Accessible through switches on the rear, or through the standard Elo OSD control box.

    Ports E/S

    COM1 and COM2 - Software specific; for future use

    Format vidéo d’entrée

    Analog VGA and HDCP-capable HDMI 1.3 video

    Connecteur du signal vidéo d’entrée

    Female DE-15 for Analog VGA
    HDMI Type A receptacle for HDMI

    Connecteur d’entrée audio

    3.5 mm TRS jack

    Plage de signal d'entrée audio

    1 Vrms max. stereo signal (standard PC line out)

    Connecteur de sortie du casque

    3.5 mm TRS jack

    Signal de sortie du casque

    Delivers 90 mW of power into a 32 ohm stereo load

    Haut-parleurs

    Two 10W RMS speakers

    Alimentation électrique

    Type: Internal AC

    Connecteur d’entrée

    IEC 60320 C14

    Tension d’entrée

    100-240 VAC, 50/60Hz

    Fréquence d’entrée

    Horizontal: 32-80 kHz / Vertical: 47-61 Hz

    Consommation électrique (standard)

    Monitor only (at 100V/60Hz):
    ON, max audio: 230W; SLEEP: 12.5W; OFF: 3.2W

    Monitor with ECM1 Computer Module(at 100V/60Hz):
    S0 - ON, max audio: 323W
    S3 - STANDBY: 16W
    S5 - OFF: 13W

    Monitor with ECM2 Computer Module(at 100V/60Hz): S0 - ON, max audio: 353W
    S3 - STANDBY: 15W
    S5 - OFF: 13W

    Dimensions

    40.2" x 24.1" x 5.2" / 1020 mm x 613 mm x 132 mm

    Dimensions du colis d’expédition

    47.0" x 31.0" x 12.0" / 1194 mm x 788 mm x 305 mm

    Poids (non emballé)

    Without Computer Module: 74.7 lbs / 33.9 kg
    With Computer Module: 80.5 lbs / 36.5 kg

    Poids (emballé)

    Without Computer Module: 99.7 lbs / 45.2 kg

    Température de fonctionnement

    0°C to 40°C / 32°F to 104°F

    Température de stockage

    -20°C to 50°C / -4°F to 122°F

    Humidité

    Operating: 20%-80%
    Storage: 10%-90%
    noncondensing

    Options de montage

    VESA MIS-F, 600 x 400, Y, 6, 90

    Temps moyen entre défaillances

    50 000 heures démontrées

    Garantie

    3 ans

    Homologations et déclarations

    CB, UL, FCC, BSMI, cUL, CE, VCCI, IC, C-TICK, S-Mark, CCC, Russia & CIS GOST, NOM, KC

    Optional Accessories/Peripherals

    Acoustic Pulse Recognition (APR) Stylus pen - Elo P/N: E963860
    IntelliTouch SAW Stylus pen - Elo P/N: D82064-000
    2.2 GHz ECM1 with Windows XP - Elo P/N: E370690
    3.0 GHz ECM2 with Windows XP - Elo P/N: E268268
    2.2 GHz ECM1 without OS - Elo P/N: E587119
    3.0 GHz ECM2 without OS - Elo P/N: E057911
    2.2 GHz ECM1 with Windows 7 - Elo P/N: E077771
    3.0 GHz ECM2 with Windows 7 - Elo P/N: E588755
    2.5 GHz ECM3 with Windows 7 - Elo P/N: E518070
    2.5 GHz ECM3 with no OS - Elo P/N: E694079
    Replacement Cable Kit - EMEA: Elo P/N - E414311
    Replacement Cable Kit - Japan: Elo P/N - E545338
    Replacement Cable Kit - Asia-Pacific: Elo P/N - E914104
    Replacement Cable Kit - North America: Elo P/N - E998924
    OSD Control Box - Elo P/N: E622897
    Webcam - Elo P/N: E828885 and Elo P/N: E574975

    Socle en option

    Elo P/N: E448725
