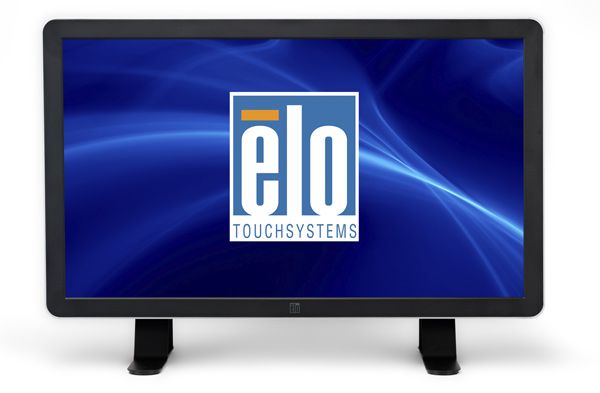

3200L 32" Interactive Digital Signage (Discontinued June 2013)
Comment acheter

Overview

The 3200L IDS touch display is more than a consumer display. IDS touch displays enable increased customer engagement and metrics for out-of-home environments by adding an exciting new dimension to traditional broadcast digital signage – the power of touch.

The 3200L offers a unique interactive display designed to enhance the touch experience. For a sensitive, accurate touch response for two simultaneous touch locations, IntelliTouch® dual-touch surface wave product technology utilizes three axes of touch information and supports finger, gloved hand and soft stylus activation. Its pure-glass construction delivers excellent imagery with high light transmissions, not affected by changes in ambient light. Housed in a highly durable steel chassis for a long-life of reliable performance, the 3200L with either technology is an efficient display canvas for almost any commercial, public access application.

The large-format, professional displays are not only attractive, but rugged enough to withstand the constant interactivity inherent in public access venues, such as retail, self-service, hospitality, transportation, education, and healthcare. Built to last in public access environments, unlike typical consumer displays, Elo touch solutions offer a longer life and a richer digital signage experience.

The IDS displays are also available in 42- and 46-inch, to fit a wide variety of configurations and uses and come in an attractively designed package well-suited for many business segments and applications.

The IDS family is also available with an optional Computer Module (reference Accessories tab) in three options, ECM1, ECM2 and ECM3, to support and deliver engaging and interactive personalized content.

Other features
  • IntelliTouch dual-touch surface acoustic wave for recognition of two simultaneous touch locations
  • Pure-glass display surface delivers excellent imagery with high light transmissions
  • Touch is impervious to changes in ambient light
  • Housed in a highly durable steel chassis for a long-life of reliable performance
  • VESA mounting with optional stand
  • Aspect ratio 16:9
  • True High Definition (HD) 720p (1366 x 768)
  • Seamless, field installable, computer module, docking integration
  • Heat strengthened glass per ASTM C1048; UL60950 ball drop test compliant
  • Analog VGA and HDCP-capable HDMI 1.3, video
  • Two 10W speakers

Spécifications

  • Technique

    Référence(s)

    IntelliTouch Dual-Touch (USB, Antiglare, Americas, Asia-Pacific, EMEA) - E994558

    Couleur du boîtier

    Noir

    Technologie et fonctionnalités tactiles

    SAW (ondes acoustiques de surface IntelliTouch®) - Deux touches

    Taille de l’écran (diagonale)

    Diagonale de 31.5”, matrice active TFT LCD (LED)

    Zone active

    27.5" x 15.4" / 698mm x 392mm

    Format d’image

    16:9

    Résolution

    1366 x 768

    Autres résolutions prises en charge

    640x480 60Hz
    720x480 60Hz
    720x576 50Hz
    800x600 56, 60Hz
    1024x768 60Hz
    1280x720 50, 60Hz
    1280x960 60Hz
    1280x1024 60Hz
    1360x768 60Hz (does not scale; image is centered on panel and the remaining active area is filled with black)
    1366x768 60Hz
    1440x900 60Hz
    1680x1050 60Hz
    1920x1080 60Hz

    Angle de vision

    Horizontal: ±89° ou 178° au total / Vertical: ±89° ou 178° au total

    Nombre de couleurs

    16.7 millions

    Luminosité (standard)

    LCD panel: 450nits
    IntelliTouch Dual-Touch: 405 nits

    Temps de réponse – total (standard)

    20 msec

    Taux de contraste

    3500:1

    Interface tactile

    USB: E994558

    Affichage à l’écran (OSD)

    Controls: Menu, Up, Down, Select
    Settings: Brightness, Contrast, Clock, Phase, Auto-Adjust, H-position, V-position, Maintain Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Mounting, OSD H-Position, OSD V-Position, Volume, Mute, Recall Defaults, Video Source, Audio Source
    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
    Lockouts: OSD, Power

    Ports E/S

    COM1 and COM2 - Software specific; for future use

    Format vidéo d’entrée

    Analog VGA and HDCP-capable HDMI 1.3 video

    Connecteur du signal vidéo d’entrée

    Female DE-15 for Analog VGA
    HDMI Type A receptacle for HDMI

    Connecteur d’entrée audio

    3.5 mm TRS jack

    Plage de signal d'entrée audio

    1 Vrms max. stereo signal (standard PC line out)

    Connecteur de sortie du casque

    3.5mm TRS jack

    Signal de sortie du casque

    Delivers 90mW of power into a 32 ohm stereo load

    Haut-parleurs

    Two 10W RMS speakers

    Alimentation électrique

    Internal AC

    Connecteur d’entrée

    AC: IEC 60320 C14

    Tension d’entrée

    AC: 100–240 VAC, 50/60Hz

    Fréquence d’entrée

    Horizontal: 32-80kHz / Vertical: 50-61Hz

    Consommation électrique (standard)

    Monitor only:
    ON, max audio, 100V/60Hz: 111W
    SLEEP, 100V/60Hz: 12W
    OFF, 100V/60Hz: 11.5W

    Monitor with ECM1 Computer Module:
    S0 - ON, max audio, 100V/60Hz: 204W
    S3 - STANDBY, 100V/60Hz: 17W
    S5 - OFF, 100V/60Hz: 13.2W

    Monitor with ECM2 Computer Module:
    ON, max audio, 100V/60Hz (S0): 234W
    S3 - STANDBY, 100V/60Hz: 17W
    S5 - OFF, 100V/60Hz: 13.2W

    Dimensions

    31.4" x 19.2" x 5.4" / 797mm x 487mm x 136mm

    Dimensions du colis d’expédition

    37.0" x 25.0" x 11.0" / 939mm x 635mm x 280mm

    Poids (non emballé)

    Without Computer Module - 46.3 lbs / 21.0 Kg
    With Computer Module - 52.0 lbs / 23.6 Kg

    Poids (emballé)

    Without Computer Module - 68.3 lbs / 31.0 kg

    Température de fonctionnement

    0°C to 40°C / 32°F to 104°F

    Température de stockage

    -20°C to 60°C / -4°F to 140°F

    Humidité

    Operating: 20% - 80%
    Storage: 10% - 90%
    noncondensing

    Options de montage

    VESA MIS-F, 400 x 200, Y, 6, 90

    Temps moyen entre défaillances

    50 000 heures démontrées

    Homologations et déclarations

    UL, cUL, FCC, CE, VCCI, IC, C-TICK, S-Mark, CCC, NOM, Rusia & CIS GOST, International CB, BSMI, KC

    Câbles d’alimentation

    Cable Kit for replacement cables
    EMEA: Elo p/n - E414311
    Japan: Elo p/n - E545338
    Asia-Pacific: Elo p/n - E914104
    North America: Elo p/n - E998924

    Optional Accessories/Peripherals

    IntelliTouch SAW Stylus Pen - Elo p/n: D82064-000
    Computer Module: 2.2 GHz ECM1 with Windows XP - Elo p/n: E370690
    Computer Module: 3.0 GHz ECM2 with Windows XP - Elo p/n: E268268
    Computer Module: 2.2 GHz ECM1 without OS - Elo p/n: E587119
    Computer Module: 3.0 GHz ECM2 without OS - Elo p/n: E057911
    Computer Module: 2.2 GHz ECM1 with Windows - Elo p/n: E077771
    Computer Module: 3.0 GHz ECM2 with Windows - Elo p/n: E588755
    Computer Module: 2.5 GHz ECM3 with Windows - Elo p/n: E518070
    Computer Module: 2.5 GHz ECM3 with no OS - Elo p/n: E694079
    Webcam - Elo p/n: E828885
    Webcam - Elo p/n: E574975
    OSD Control Box - Elo p/n: E622897
    4GB RAM Kit - Elo p/n: E331130
    Optional stand - Elo p/n: E953908

    Accessoires IDS en option

    i3 3.4 GHz ECMG2C - Windows 10 pour Série IDS 02 - Réf Elo: E991367
