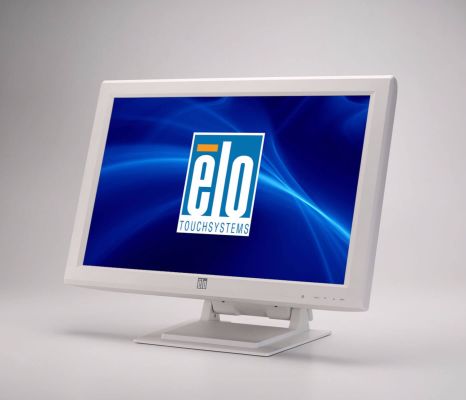

2400LM 24" Touchscreen Monitor (Discontinued October 2013)
Comment acheter

Overview

The fully featured 2400LM touchmonitor offers best-in-class optical performance mated to leading touch technologies – IntelliTouch® surface acoustic wave and AccuTouch® five-wire resistive–in addition to a combination touch controller, DVI, VGA and built-in speakers, available in white or gray color. The 2400LM is compliant with multiple safety and electrical certifications including EN 60950-1 and EN 60601-1 for safety and EN 60950-1, EN55022, EN55024, and EN 60601-1 (3rd Edition) for EMC and the 2400LM meets RoHS compliance. As a result the 2400LM is an excellent fit for a wide variety of settings, including healthcare.

The Elo 2400LM touchmonitor is an effective solution for nurse station, computer-aided therapy, electronic medical record keeping, paperless charting, patient self check-in/registration, as well as non-medical applications that benefit from DVI-D input, speakers and a pristine image display.

Other features.
  • High quality panel wide viewing angles, and high contrast ratio - Best-in-class optical performance
  • Available with AccuTouch five-wire resistive touchscreen or IntelliTouch surface acoustic wave touchscreen - Choice of touch technology optimized for a wide variety of modalities
  • High definition LED display - Ultimate HD interactivity, clarity and resolution
  • LED backlighting - Allows for state-of-the-art slim design, while reducing power consumption
  • Design is tightly controlled by Elo specifications - Elo touchmonitors have a long history of availability, which is important to maintain continuity through all phases of project roll-outs and servicing
  • Removable base with mounting options including - Affords installation flexibility with both wall and arm-mounting capabilities
  • EN 60950-1 and EN 60601-1 (3rd Edition) for safety; EN 55011, EN 55024, EN 61000-3-3 and EN 60601-1-2 for EMC - Recognized by public health authorities in most countries as the safety standard for certain medical electrical equipment
  • RoHS compliant - Meets the lead-free, Restriction of Hazardous Substances requirements
  • 3 year warranty - Fosters customer satisfaction and peace of mind; 1 year or 2 year extended warranty services available at additional cost
  • Built-in speakers - For applications that require audio

Spécifications

  • Technique

    Référence(s)

    IntelliTouch (USB and Serial, Antiglare,North America) - E178661
    IntelliTouch (USB and Serial, Antiglare,North America) - E109990
    AccuTouch (USB and Serial, Antiglare,North America) - E567145
    IntelliTouch (USB and Serial, Antiglare,Japan) - E945691
    AccuTouch (USB and Serial, Antiglare,Europe) - E100905

    Couleur du boîtier

    Dark Gray or White

    Technologie et fonctionnalités tactiles

    AccuTouch® - Résistant à 5 fils - Touche unique
    SAW (ondes acoustiques de surface IntelliTouch®) - Touche unique

    Taille de l’écran (diagonale)

    Diagonale de 24”, matrice active TFT LCD (LED)

    Format d’image

    16:10

    Zone active

    20.4" x 12.8" / 518mm x 324mm

    Résolution

    1920 x 1200

    Autres résolutions prises en charge

    640 x 480 at 60Hz
    800 x 600 at 56, 60Hz
    1024 x 768 at 60Hz
    1280 x 960 at 60Hz
    1280 x 1024 at 60Hz
    1360 x 768 at 60Hz
    1440 x 900 at 60 Hz
    1600 x 1200 at 60 Hz
    1680 x 1050 at 60 Hz
    1920 x 1200 at 60 Hz

    Angle de vision

    Horizontal: ±80° ou 160° au total / Vertical: ±80° ou 160° au total

    Nombre de couleurs

    16.7 millions

    Luminosité (standard)

    LCD panel: 250 nits
    AccuTouch: 245 nits
    IntelliTouch: 190 nits

    Temps de réponse – total (standard)

    5 msec

    Taux de contraste

    1000:1

    Interface tactile

    USB and Serial

    Commandes d’utilisation

    Controls: menu, up, down, select, power
    Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, color temperature, OSD H/V position, OSD timeout, recall defaults, sharpness, volume
    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
    Lockouts: OSD, power

    Connecteur d’entrée audio

    3.5mm TRS jack

    Plage de signal d'entrée audio

    0.5Vrms maximum stereo signal

    Haut-parleurs

    Two 2W internal speakers

    Format vidéo d’entrée

    Analog VGA, DVI video

    Connecteur du signal vidéo d’entrée

    15-pin female D-sub (Analog VGA, 25-pin female DVI-D (DVI）

    Consommation électrique (standard)

    Monitor only: 50W
    Monitor + AC/DC adapter: 61W

    Alimentation électrique

    AC/DC power adapter

    Tension d’entrée

    AC: 100-240VAC, 50/60Hz; DC: 12V +/- 10%

    Connecteur d’entrée

    MINI DIN 4pin power jack; IEC 60320 C6

    Fréquence d’entrée

    Horizontal: 31-75 kHz / Vertical: 56-61 Hz

    Sync Types

    Separate H&V syncs, Composite Sync, and Sync-On-Green (Analog VGA）

    Dimensions du colis d’expédition

    27.6" x 20.1" x 10.0" / 700mm x 510mm x 255mm

    Poids (avec socle)

    27.8 lbs / 12.6kg

    Poids (sans socle)

    21.5 lbs / 9.8kg

    Poids d’expédition (avec socle)

    36.4 lbs / 16.5kg

    Température de fonctionnement

    0°C to 40°C / 32°F to 104°F

    Température de stockage

    -20°C to 60°C / -4°F to 140°F

    Humidité

    Operating: 20% to 80%
    Storage: 10% to 90%
    noncondensing

    Temps moyen entre défaillances

    50 000 heures démontrées

    Options de montage

    With provided stand (on flat surface or bolted to surface via holes in base) in landscape
    100mm VESA rear-mount

    Autres caractéristiques

    Security lock receptacle

    Garantie

    3 ans

    Homologations et déclarations

    CB, CCC, UL, cUL, FCC, CE, VCCI, C-Tick (Class B), IEC60601-1 (3rd Edition)
    Elo Declarations: RoHS, WEEE, IMERC, CE

    Câbles d’alimentation

    Hospital-grade power cord for US/Canada; European power cord.

    Câble d’alimentation CA

    AC power cables for power brick are also available at additional cost:
    United States: Elo p/n: E587451
    Europe: Elo p/n: E076657
    United Kingdom: Elo p/n: E048881

    Jeu de câbles pour câbles de remplacement

    Elo p/n: E260110, available at additional cost.

    Stylet IntelliTouch en option

    D82064-000, available at additional cost.

    Câbles tactiles/vidéo

    Detachable touch and video cables are included.

    Optional Accessories/Peripherals

    North American and European power cables included
