2240L 22" Open Frame Touchscreen (Discontinued November 2014)
Overview
Specifically suited for use in high-traffic casino gaming, video-game entertainment and self-service kiosk environments, the 2240L complements Elo's expanded family of touch solutions for casino gaming, amusement and digital signage. The 2240L features a high quality LCD panel with an ultra-wide viewing angle of 178° x 178° horizontal and vertical, which is wider than most other 22" touchmonitors available today. Colors remain sharp, vivid and true, and graphics retain their integrity due to the 300 nits panel brightness.

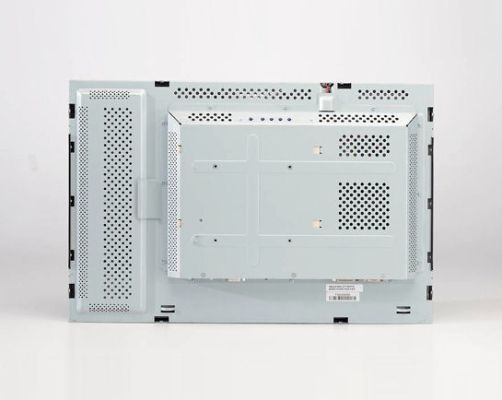

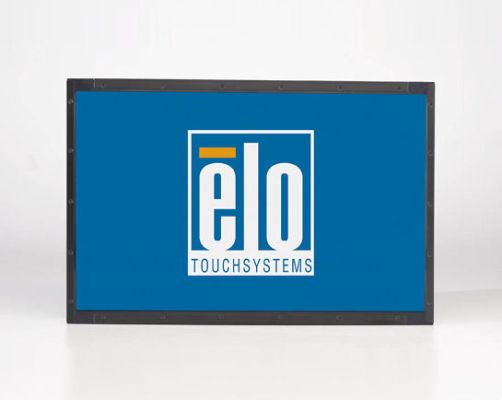

The innovative design of the open-frame 2240L provides a seamless fit for gaming and kiosk applications, and can be deployed in both landscape and portrait orientations. With a front-facing metal hardened anodized bezel and L-mounting brackets and slim dimensional profile (500 x 332 x 80 mm), the 2240L offers installation flexibility in a variety of entertainment and retail environments.
Features
- A bright, high contrast display with ultra-wide 178° x 178° viewing angle easily attracts and holds the users' attention
- Elo Touch Solutions IntelliTouch (surface acoustic wave) technology offers high quality optics, durability, and long-term reliability
- "Designed for touch" from the ground-up, including Elo Touch Solutions proprietary ultra-slim protective bezel for sealing against liquids.
- A long product life with the enclosure controlled by Elo Touch Solutions specifications
- Multiple mounting options are available
- Dual serial and USB connectivity are standard
- Worldwide agency approvals and a three-year standard warranty are backed by Elo
Spécifications
-
Technique
Référence(s)
IntelliTouch (Clear, Americas) - E496859
Couleur du boîtier
Noir
Technologie et fonctionnalités tactiles
SAW (ondes acoustiques de surface IntelliTouch®) - Touche unique
Interface tactile
Dual serial/USB
Taille de l’écran (diagonale)
Diagonale de 22”, matrice active TFT LCD (LED)
Affichage à l’écran (OSD)
Controls (back): menu, up, down, select
Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, color temperature, input video select, OSD H/V position, OSD timeout, recall color, recall defaults, sharpness, display information
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: power, user controlsFormat d’image
16:10
Zone active
18.7" x 11.7" / 474 mm x 296 mm
Résolution
1680 x 1050
Autres résolutions prises en charge
720x350 @ 70Hz
720x400 @ 70Hz
640x480 @ 60Hz, 66Hz, 72Hz
800x500 @ 60Hz
800x600 @ 56Hz, 60Hz, 72Hz
832x624 @ 75 Hz
1024x768 @ 60Hz, 65Hz, 72Hz, 75Hz
1152x864 @ 75 Hz
1280x768 @ 65 Hz
1280x800 @ 60 Hz
1280x960 @ 60 Hz
1280x1024 @ 60Hz, 75Hz
1360x768 @ 60 Hz
1366x768 @ 60 Hz
1440x900 @ 60 Hz
1600x1200 @ 60 Hz
1680x1050 @ 60HzAngle de vision
Horizontal: ±89° ou 178° au total / Vertical: ±89° ou 178° au total
Nombre de couleurs
16.7 millions
Luminosité (standard)
LCD panel: 400 nits
IntelliTouch: 270 nitsTemps de réponse – total (standard)
16 msec
Taux de contraste
1000:1
Format vidéo d’entrée
Analog VGA, DVI video

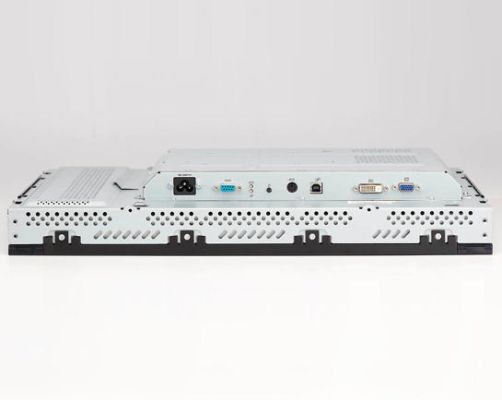

Connecteur du signal vidéo d’entrée
Mini D-Sub 15-Pin VGA type, DVI-D connector
Alimentation électrique
Internal AC
Tension d’entrée
AC: 100-240 VAC, 50-60 Hz
Connecteur d’entrée
AC: IEC 60320 C6
Fréquence d’entrée
Horizontal: 30-83 kHz
Vertical: 56-75 HzConsommation électrique (standard)
60 W
Dimensions
19.7" x 13.1" x 3.2" / 500mm x 332 mm x 80 mm
Dimensions du colis d’expédition
23.62" x 19.68" x 9.06" / 600 mm x 500 mm x 230 mm
Poids (non emballé)
16.6 lbs / 7.5 kg
Poids (emballé)
23.5 lbs / 10.7 kg
Température de fonctionnement
0°C to 40°C / 32°F to 104°F
Température de stockage
-20°C to 60°C / -4°F to 140°F
Humidité
Operating: 20%-80%
Storage: 10%-90%Étanchéité
Touchscreen sealed to bezel
Touchscreen sealed to LCDTemps moyen entre défaillances
50 000 heures démontrées
Garantie
3 ans
Homologations et déclarations
UL, cUL, FCC, Australia C-Tick, Argentina S-mark, Mexico NOM, CE, Russia PCT, China CCC, Korea MIC, Taiwan BSMI, China RoHS, UL, cUL, FCC, Australia C-Tick, Argentina S-mark, Mexico NOM, CE, Russia PCT, China CCC, Japan VCCI, China RoHS
Elo Declarations: WEEE, IMERCOptions/Périphériques/Mises à jour
Kit de câble de remplacement: E378229
Stylet IntelliTouch: D82064-000
Télécommande OSD Elo (avec cable 1,8 m): E622897Stylet IntelliTouch en option
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost
