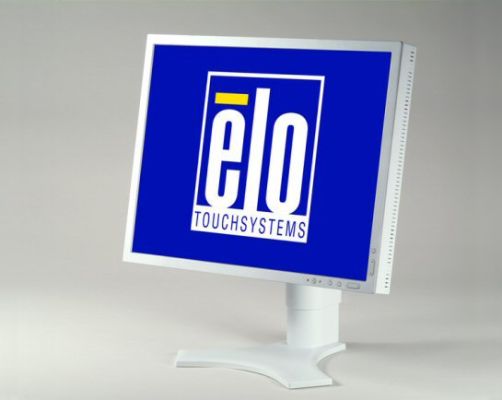

2020L 20" Touchscreen Monitor (Discontinued January 2007)
Overview
The 2020L touchmonitor is designed for retail POS, industrial, and government applications as well as interactive digital signage. The large display area is suitable for many different environments, including flight simulators, industrial equipment, interactive digital signage, and retail.
Other features.
- Available with AccuTouch® Five-Wire Resistive Technology or IntelliTouch® Surface Wave Technology and serial or USB interface
- High quality panel with 178° viewing angle
- Available in black or beige
- Can be used in portrait mode
- Adjustable height
- Carrying handle for easy transport
- Quick release stand
- Desktop stand can be removed or reversed for wall mounting option
- VESA mounting option
- Sealed touchscreen
- Controls on the side rather than the front
- Digital on-screen display (OSD)
Spécifications
-
Technique
Référence(s)
AccuTouch (USB, Antiglare, Worldwide) - E418308
AccuTouch (Serial, Antiglare, Worldwide) - E854384
AccuTouch (USB, Antiglare, Worldwide) - E973889
IntelliTouch (USB, Antiglare, Worldwide) - E637315
IntelliTouch (Serial, Antiglare, Worldwide) - E994124
IntelliTouch (USB, Antiglare, Worldwide) - E414923
IntelliTouch (Serial, Antiglare, Worldwide) - E735022Couleur du boîtier
Black or Beige
Technologie et fonctionnalités tactiles
AccuTouch® - Résistant à 5 fils - Touche unique
SAW (ondes acoustiques de surface IntelliTouch®) - Touche uniqueTaille de l’écran (diagonale)
20.1" diagonal, Active matrix TFT L
Format d’image
4:3
Zone active
16.14" x 12.12" / 409.9mm x 307.8mm
Résolution
1600 x 1200 at 60 Hz
Autres résolutions prises en charge
1600 x 1200 at 60 Hz
1280 x 960 at 60 Hz
1280 x 1024 at 60-85 Hz
1200 x 1600 at 60 Hz
1152 x 864 at 70-85 Hz
1152 x 870 at 75 Hz
1024 x 768 at 60-85 Hz
832 x 624 at 75 Hz
800 x 600 at 56-85 Hz
720 x 400 at 70-85 Hz
640 x 480 at 60-85 Hz
640 x 400 at 70-85 Hz (digital)Angle de vision
Horizontal: ±89° ou 178° au total / Vertical: ±89° ou 178° au total
Nombre de couleurs
16.7 millions
Luminosité (standard)
LCD panel: 280 nits
AccuTouch: 238 nits
IntelliTouch: 266 nitsDot Pitch
0.255 mm
Temps de réponse – total (standard)
16 msec
Taux de contraste
700:1
Touch Interfaces
Serial: E854384, E994124, E735022
USB: E418308, E973889, E637315, E414923Affichage à l’écran (OSD)
Digital
Connecteur du signal vidéo d’entrée
15pin D-sub, DVI-D, DVI-I and VGA
Consommation électrique (standard)
On: 50W
Power saving mode: < 1WAlimentation électrique
Internal AC
Tension d’entrée
AC 100–120V; AC 220–240V
Fréquence d’entrée
Analog
Horizontal: 31.5–91.1 kHz / Vertical: 50–85 Hz
Digital
Horizontal: 31.5–99.4 kHz / Vertical: 50–85 HzDimensions de l’écran (sans socle)
17.3" x 13.4" x 3.3" / 439.2mm x 340mm x 85mm
Dimensions de l’écran (avec socle)
17.3" x 22.3" x 9.7" / 439.2mm x 565.5mm x 247.3mm
Poids (avec socle)
21.4 lbs / 9.7 kg
Poids (non emballé)
15.4 lbs / 7.0 kg
Température de fonctionnement
5°C to 35°C / 41°F to 95°F
Température de stockage
-10°C to 60°C / 14°F to 140°F
Humidité
Operating: 30%-80%
Storage: 10%-85%
noncondensingTemps moyen entre défaillances
40,000 – 50,000 hours
Options de montage
100 mm VESA mount
Removable and adjustable base
Wall mountableGarantie
4-years parts and labor, including backlight
Durée de vie du rétroéclairage
40,000 hours until half brightness
Homologations et déclarations
The approved monitor is not submitted for re-certification after touch modification.
