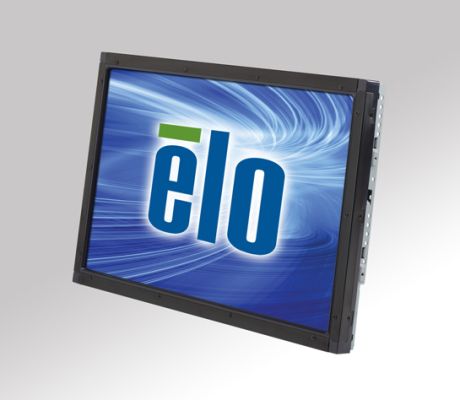

1938L 19" Open Frame Touchscreen (Discontinued February 2016)
Comment acheter

Overview

The 1938L open-frame touchmonitor delivers a cost-effective touch solution for OEMs and systems integrators, and complements the expanded family of Elo touch solutions for gaming and amusement, retail self-service and kiosk applications. This compact touchmonitor is "designed for touch," with proven expertise and reliability built-in, not added as an afterthought by altering an existing monitor.

Like all Elo open-frame touchmonitors, the specifications and tooling are controlled to ensure a long product life, which is important in maintaining continuity for all phases of project rollouts and servicing. The 1938L features an injection-molded bezel with a virtually invisible water-resistant seal, thus making it a good choice to withstand the rigors of public use. Narrow borders, black anodized bezel hardware, multiple mounting options, and dual serial/USB touch interface add to the touchmonitor's flexibility. Worldwide agency approvals cover the entire monitor that is developed, built and supported by Elo TouchSystems, a true single-source supplier.

The 1938L is available with a choice of IntelliTouch surface acoustic wave and SecureTouch surface acoustic wave touch technologies. (SecureTouch monitors use a 3 mm chemically strengthened glass touch sensor.) The comprehensive range of features includes analog and digital interfaces, multi-lingual on-screen display (OSD), mounting VESA standard, mounting brackets, cabled remote on-screen display (OSD), and worldwide compliance.

Features

  • High quality panel with 160°x160° viewing angle
  • 1000:1 contrast ratio
  • Long lasting product cycle-enclosure controlled by Elo specifications
  • Future generation panels phased-in without external changes
  • Integrated precision minibezel with water-resistant 0.5 mm seal
  • Mounting options including rear-mount (with two included mounting brackets) and VESA mount
  • IntelliTouch or SecureTouch surface wave touch technology with dual serial/USB touch interface. (SecureTouch monitors use a 3 mm chemically strengthened glass touch sensor.)
  • Integrated multilingual on-screen display (OSD), connector for optional remote on-screen display (OSD)
  • Worldwide agency approvals
  • Three year warranty
  • 3-D electronic design files available

Spécifications

  • Technique

    Référence(s)

    IntelliTouch (Antiglare, Americas, EMEA) - E965017

    Couleur du boîtier

    Noir

    Technologie et fonctionnalités tactiles

    SAW (ondes acoustiques de surface IntelliTouch®) - Touche unique

    Interface tactile

    Dual serial/USB

    Taille de l’écran (diagonale)

    Diagonale de 19”, matrice active TFT LCD (LED)

    Affichage à l’écran (OSD)

    Controls (optional remote with 1.8m cable): Auto/Sel, up, down, menu
    Controls (back): menu, left, right, select, power
    Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
    Languages: English, French, Italian, German, Spanish, Traditional Chinese, Simplified Chinese, Korean, Japanese
    Lockouts: power, user controls

    Format d’image

    16:10

    Zone active

    16.1" x 10.0" / 408 mm x 255 mm

    Résolution

    1440 x 900 at 60 Hz

    Autres résolutions prises en charge

    1680 x 1050 at 60 Hz
    1440 x 900 at 60 Hz
    1366 x 768 at 60 Hz
    1360 x 768 at 60 Hz
    1280 x 1024 at 60 or 75 Hz
    1280 x 960 at 60 Hz
    1280 x 768 at 60, 65 or 75 Hz
    1152 x 864 at 75 Hz
    1024 x 768 at 60, 65, 72 or 75 Hz
    832 x 624 at 75 Hz
    800 x 600 at 56, 60 or 72 Hz
    720 x 400 at 70 Hz
    640 x 350 at 70Hz
    640 x 480 at 60, 66 or 72 Hz

    Angle de vision

    Horizontal: ±80° ou 160° au total / Vertical: ±80° ou 160° au total

    Nombre de couleurs

    16.7 millions

    Luminosité (standard)

    LCD panel: 250 nits
    IntelliTouch: 225 nits

    Temps de réponse – total (standard)

    3.7 msec

    Taux de contraste

    1000:1

    Format vidéo d’entrée

    Analog VGA, DVI (Asia/Pacific models without DVI)

    Connecteur du signal vidéo d’entrée

    Mini D-Sub 15-Pin VGA type, DVI-D

    Alimentation électrique

    External DC - Optional power brick (sold separately)

    Connecteur d’entrée d’alimentation (écran)

    Type: DC Barrel Jack
    Barrel inner diameter: 6.4mm (+/- 0.3mm)
    Pin outer diameter: 2.0mm (+0.0 -0.1mm)
    Barrel depth: 8.8mm (+/- 0.3mm)

    Connecteur d’alimentation (bloc d’alimentation)

    Type: DC Barrel Plug
    Barrel outer diameter: 5.5mm (+/- 0.1mm)
    Pin inner diameter: 2.1mm (+/-0.1mm)
    Barrel length: 9.5mm (+/- 0.5mm)

    Tension d’entrée

    DC: +12VDC ±5%

    Fréquence d’entrée

    Horizontal: 83 kHz
    Vertical: 76 Hz

    Consommation électrique (standard)

    Monitor only: 41.1W
    Monitor and power brick: 41.6W

    Dimensions

    17.5" x 11.7" x 1.9" / 444 mm x 297 mm x 47 mm

    Dimensions du colis d’expédition

    21.3" x 6.9" x 15.4" / 540 mm x 175 mm x 390 mm

    Poids (non emballé)

    10.5 lbs / 4.8 kg

    Poids (emballé)

    15.2 lbs / 6.9 kg

    Température de fonctionnement

    0°C to 40°C / 32°F to 104°F

    Température de stockage

    -20°C to 60°C / -4°F to 140°F

    Humidité

    Operating: 20%-80%
    Storage: 10%-90%

    Étanchéité

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    Temps moyen entre défaillances

    50 000 heures démontrées

    Garantie

    3 ans

    Homologations et déclarations

    Worldwide: UL, cUL (Recognized) , TÜV-T Mark, Argentina S, CE, FCC, VCCI, IC, GOST-R Mark, C-Tick (Class B), BSMI, KC, CCC

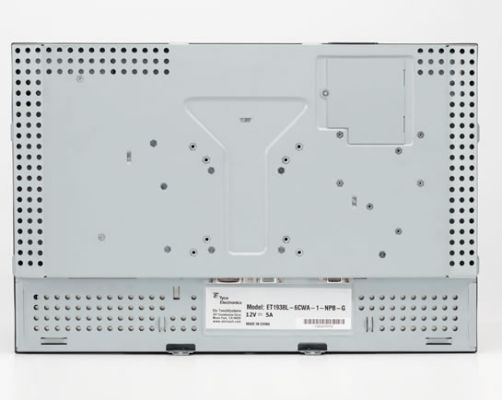

    Options de montage

    75 mm or 100 mm VESA mount
    Rear mount or with included standard mounting brackets

    Options/Périphériques/Mises à jour

    Adaptateur électrique et kit de câbles pour l'Amérique du Nord: E005277
    Adaptateur électrique et kit de câbles pour l'Europe et Corée: E571601
    Adaptateur électrique et kit de câbles pour le Royaume-Uni: E180092
    Adaptateur électrique et kit de câbles pour la Chine: E558862
    Adaptateur électrique et kit de câbles pour Taïwan: E818655
    Adaptateur électrique et kit de câbles pour le Japon: E182546
    Adaptateur électrique et kit de câbles pour l'Argentine: E887099
    Télécommande OSD Elo (avec cable 1,8 m): E622897

    Brackets & Bezel Kits

    Part number E484257, available at additional cost. Minimum order quantity of 50 sets

    Câbles tactiles/vidéo

    Detachable touch and video cables are included

    Stylet IntelliTouch en option

    Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost
