1928LM 19" Touchscreen Monitor (Discontinued June 2015)
Overview

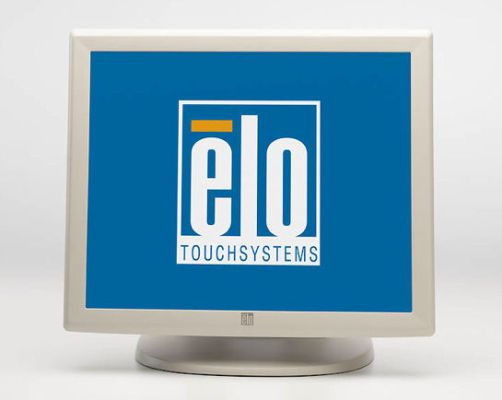

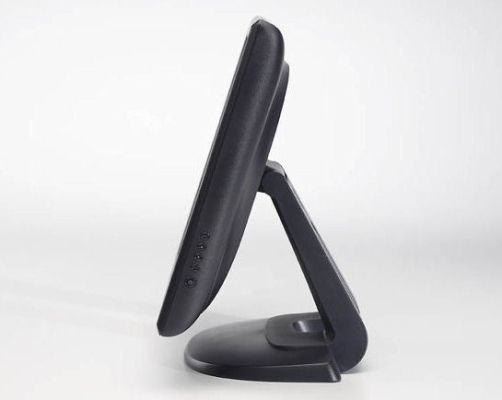

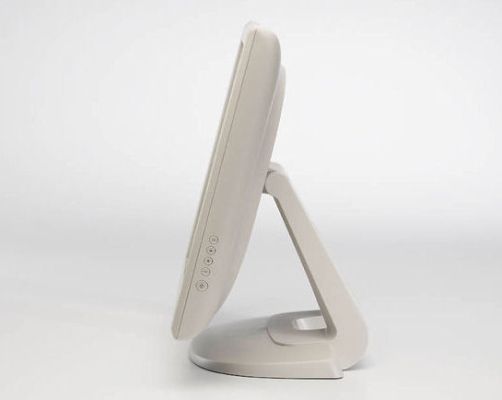

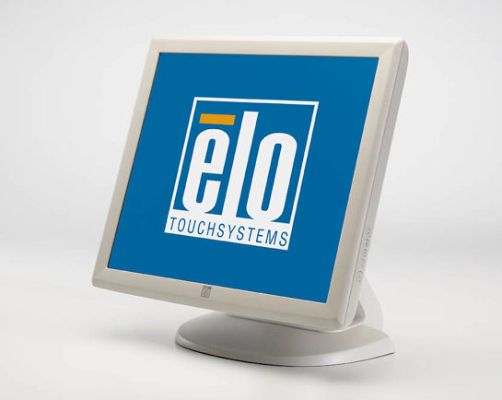

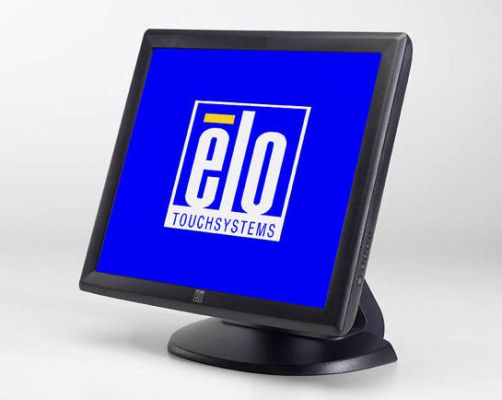

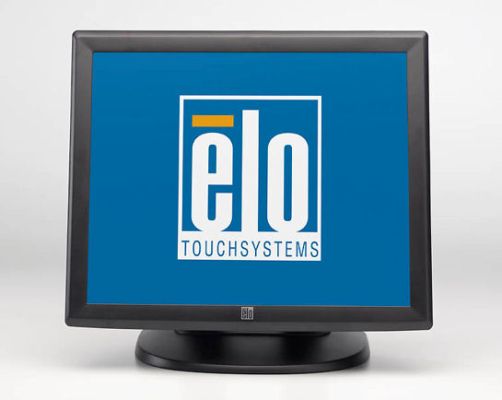

The fully featured 1928L touchmonitor offers best-in-class optical performance mated to the medical industry's leading touch technologies–IntelliTouch surface acoustic wave, APR (acoustic pulse recognition), and AccuTouch five-wire resistive–in addition to a combination touch controller, DVI, VGA and built-in speakers. The product can be ordered in beige or gray color, touch and non-touch enabled versions.
The 1928L carries a wide array of electronic certifications, RoHS compliance and includes an innovative IPX1 enclosure design which sheds water and is safe from liquid drops and spills. As a result the 1928L is an excellent fit for a wide variety of healthcare applications. The Elo medical touchmonitor is also a cost-effective solution for nurse station, computer-aided therapy, electronic medical record keeping, paperless charting, patient self check-in/registration applications, as well as non-medical applications benefiting from DVI-D input, speakers and best-in-class image performance.
Other features.
- A wide array of electronic certifications and IPX1 drip-proof enclosure
- Long lasting product cycle–enclosure controlled by Elo specifications
- Touch can be activated with gloved hands
- 5-second power down delay (prevents accidental power shut down)
- Leading edge optical performance
- 178° x 178° viewing angle
- 1300:1 contrast ratio
- 300-nit brightness
- Analog and digital (DVI-D) video inputs
- Built in speakers located in the display head
- "Designed for touch" features such as a stable tilt stand
- Available with AccuTouch Five-Wire Resistive Technology, Acoustic Pulse Recognition Technology, IntelliTouch Surface Wave Technology, and as non-touch enabled version
- Combination controller (both Serial and USB)
Spécifications
-
Technique
Référence(s)
AccuTouch (Dual serial/USB, Antiglare, Americas, EMEA) - E935808
AccuTouch (Dual serial/USB, Antiglare, Americas, EMEA) - E522556
AccuTouch (Dual serial/USB, Antiglare, Asia/Pacific) - E686117
AccuTouch (Dual serial/USB, Antiglare, Asia/Pacific) - E139551
IntelliTouch (Dual serial/USB, Antiglare, Americas, EMEA) - E897317
IntelliTouch (Dual serial/USB, Antiglare, Americas, EMEA) - E188117
IntelliTouch (Dual serial/USB, Antiglare, Asia/Pacific) - E746115
IntelliTouch (Dual serial/USB, Antiglare, Asia/Pacific) - E499616
Non-touch (Antiglare, Asia/Pacific) - E205676
Non-touch (Antiglare, Asia/Pacific) - E266366
Non-touch (Antiglare, Americas, EMEA) - E939583
Non-touch (Antiglare, Americas, EMEA) - E586024Couleur du boîtier
Dark Gray or Beige
Technologie et fonctionnalités tactiles
AccuTouch® - Résistant à 5 fils - Touche unique
SAW (ondes acoustiques de surface IntelliTouch®) - Touche unique
Non tactileTaille de l’écran (diagonale)
Diagonale de 19”, matrice active TFT LCD (LED)
Format d’image
5:4
Zone active
14.8" x 11.9" / 376mm x 301mm
Résolution
1280 x 1024 at 60 Hz
Autres résolutions prises en charge
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66, 72 or 75 HzAngle de vision
Horizontal: ±89° ou 178° au total / Vertical: ±89° ou 178° au total
Nombre de couleurs
16.7 millions
Luminosité (standard)
LCD panel: 300 nits
AccuTouch: 246 nits
IntelliTouch: 276 nitsTemps de réponse – total (standard)
20 msec
Taux de contraste
1300:1
Interface tactile
Dual serial/USB
Affichage à l’écran (OSD)
Controls (side): menu, up, down, select, power
Settings: contrast , brightness, H-position, V-position, recall default, RGB, volume, sharpness, phase, clock, OSD H-position, OSD V-position, OSD timeout, auto adjust, input select
Languages: English, French, Dutch, Spanish, Swedish, Italian, Chinese, Polish, Japanese
Lockouts: power, user controlsHaut-parleurs
2 watt/channel speakers located in display head
Format vidéo d’entrée
Analog VGA, DVI-D
Connecteur du signal vidéo d’entrée
Mini D-Sub 15-Pin VGA type, DVI-D connector
Consommation électrique (standard)
48W
Alimentation électrique
External power adapter; efficiency rating: CAT: V
Tension d’entrée
DC: 12.0 V ± 0.60 V
Connecteur d’entrée
DC: Coaxial power jack (2.5 mm pin diameter, 6.3 mm barrel diameter, 9.5 mm barrel length)
Fréquence d’entrée
Horizontal: 31.5–80 kHz / Vertical: 56.3–75 Hz
Dimensions de l’écran (avec socle)
16.9" x 15.4" x 8.3" / 429mm x 390mm x 212mm
Dimensions du colis d’expédition
21.27" x 20.09" x 11.23" / 540mm x 510mm x 315mm
Poids (avec socle)
17.7 lbs / 8.0 kg
Poids (sans socle)
13.5 lbs / 6.1 kg
Poids d’expédition (avec socle)
26.1 lbs / 11.8 kg
Température de fonctionnement
0°C to 40°C / 32°F to 104°F
Température de stockage
-20°C to 60°C / -4°F to 140°F
Humidité
Operating: 20%-80%
Storage: 10%-90%
noncondensingÉtanchéité
Touchscreen sealed to bezel
Touchscreen sealed to LCDTemps moyen entre défaillances
50 000 heures démontrées
Options de mouvement du socle
Tilt, removable
Options de montage
100 mm VESA mount
Threaded-through mounting holes, under standAutres caractéristiques
2 stage DPMS
VESA DDC, Plug & Play
Five-second power down delay function
Security lock receptacleGarantie
3 ans
Homologations et déclarations
North America / Worldwide models: UL, cUL, CB, MPR II, CE, FCC, VCCI, IC, C-TICK (Class B), ANSI, AAMI 60601-1:2005, UL 60601-1:2003, EN 60601-1-2:2007, CISPR 11:2009+A1:2010 Class B, IEC60529:IPX1
Asia models: UL, cUL, CB, MPR II, CE, FCC, VCCI, IC, C-TICK (Class B), KC, CCC, China RoHS; ANSI, AAMI 60601-1:2005, UL 60601-1:2003, EN 60601-1-2:2007, CISPR 11:2009+A1:2010 Class B, IEC60529:IPX1Câbles d’alimentation
North American and European power cables are included.
For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying Elo p/n: E235317.Jeu de câbles pour câbles de remplacement
Elo p/n: E450339, available at additional cost.
Bloc d’alimentation électrique en option
Elo p/n: E448370, available at additional cost.
Stylet IntelliTouch en option
D82064-000, available at additional cost.
Câbles tactiles/vidéo
Detachable touch and video cables are included.
