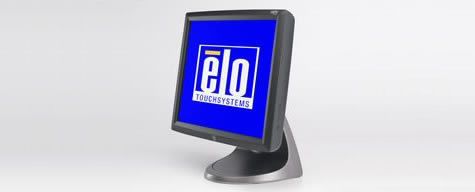

1926L 19" Touchscreen Monitor (Discontinued June 2007)
Overview
The 1926L carries worldwide medical certifications and is available with AccuTouch five-wire resistive touchscreen technology, the most widely used technology for medical equipment applications, or IntelliTouch surface wave technology for superior image quality. Certifications include UL/cUL 2601-1/C22.2 No. 601.1, and CE MDD. The innovative IPX1 enclosure design (AccuTouch only) ensures that the entire touchmonitor sheds water and is safe from liquid drops and spills. The drip-proof nature of this touchmonitor allows the monitor to be sterilized with hospital-grade disinfectants. As a result, this monitor can be safely placed in patient care areas, such as the operating room, where contamination may occur. The touchscreen can be activated with a gloved hand-a critical capability for medical applications. The 1926L is a truly integrated solution for medical equipment OEMs and health care systems integrators seeking a reliable, durable and cost-effective medical grade touchmonitor.
Other features.
- High quality panel with 170°x170° viewing angle
- Analog and digital (DVI-D) video inputs, plus S-video input and RCA jack
- Two external USB ports for peripherals
- "Designed for touch" features such as a stable tilt base (-5° from vertical to 90°/horizontal)
- Cables hidden from user's view
- Mounting holes on base bottom for tabletop security
- Base removable or reversible for wall mounting, plus VESA mounting option
- Built-in speakers located in display head
- Available with AccuTouch® Five-Wire Resistive Technology or IntelliTouch® Surface Wave Technology and serial or USB interface
- Sealed touchscreen
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Long-lasting product cycle
- Worldwide agency approvals
Spécifications
-
Technique
Référence(s)
AccuTouch (Serial, Antiglare, Worldwide) - F49784-000
AccuTouch (USB, Antiglare, Worldwide) - 107650-000
AccuTouch (Serial, Antiglare, Worldwide) - E51854-000
AccuTouch (USB, Antiglare, Worldwide) - F22431-000
IntelliTouch (Serial, Antiglare, Worldwide) - E343474
IntelliTouch (USB, Antiglare, Worldwide) - E125960
IntelliTouch (Serial, Antiglare, Worldwide) - E624063
IntelliTouch (USB, Antiglare, Worldwide) - E764789Couleur du boîtier
Dark Gray or Beige
Technologie et fonctionnalités tactiles
AccuTouch® - Résistant à 5 fils - Touche unique
SAW (ondes acoustiques de surface IntelliTouch®) - Touche uniqueTaille de l’écran (diagonale)
Diagonale de 19”, matrice active TFT LCD (LED)
Format d’image
5:4
Zone active
14.8" x 11.9" / 376mm x 301mm
Résolution
1280 x 1024 at 60, 70 or 75 Hz
Autres résolutions prises en charge
1280 x 1024 at 60 or 75 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66, 72 or 75 HzAngle de vision
Horizontal: ±85° ou 170° au total / Vertical: ±85° ou 170° au total
Nombre de couleurs
16.7 million, 8-bit per color data
Luminosité (standard)
LCD panel: 300 nits
AccuTouch: 246 nits
IntelliTouch: 276 nitsTemps de réponse – total (standard)
25 msec
Taux de contraste
700:1
Interface tactile
Serial: F49784-000, E51854-000, E343474, E624063
USB: 107650-000, F22431-000, E125960, E764789Affichage à l’écran (OSD)
Digital
Locking OSD and/or powerCommandes d’utilisation
OSD: brightness, contrast, color temperature, H/V position, phase/clock, recall, auto-adjust, input select,
Languages: English, Spanish, German, French, Italian, Swedish, Finnish, Danish, Portuguese, Dutch, JapaneseConnecteur d’entrée audio
Computer audio on 3.5mm stereo mini
Audio for video on dual RCA jacksHaut-parleurs
Two built-in, rear-facing 2W speakers in display head
Format vidéo d’entrée
Digital Video Input (DVI-D), analog, S-Video, NTSC/PAL
Connecteur du signal vidéo d’entrée
DVI-I, RCA, S-Video on monitor
DVI-D, HD-15, S-Video, RCA plugs via cablesFréquence vidéo d’entrée
Separate H & V, composite sync, sync-on-green
Consommation électrique (standard)
40 W
Alimentation électrique
External (inlet connector: IEC60320-C13)
Tension d’entrée
100-240 V, 50/60 Hz
Fréquence d’entrée
Horizontal: 31-80 kHz / Vertical: 56-75 Hz
Sync Types
Separate H & V, composite sync, sync-on-green
Dimensions de l’écran (avec socle)
17.2" x 18.0" x 9.49" / 436mm x 457mm x 241mm
Poids (non emballé)
21.5 lbs / 9.78 kg
Poids (emballé)
30.0 lbs / 13.6 kg
Température de fonctionnement
0°C to 40°C
Température de stockage
-20°C to 60°C
Humidité
Operating: 20%-80%
Storage: 5%-90%
noncondensingTemps moyen entre défaillances
50 000 heures démontrées
Options de montage
100 mm M4 VESA mount
100 mm M5 threaded holes on base bottom for table top security
Removable base
Reversible stand for wall mounting
Stand rotates from -5° (from vertical) to 90° (horizontal)
Locking tilt controlGarantie
3 ans
Homologations et déclarations
UL, cUL Classified 60601-1, CE, FCC, IC, C-Tick Class B, IPX1 (AccuTouch only)
Câbles d’alimentation
A 10' hospital grade North America power cord and a European power cable are included.
For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying Elo p/n: 276875-000.Stylet IntelliTouch en option
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Elo p/n: D82064-000, available at additional cost.
Câbles tactiles/vidéo
Detachable touch and video cables are included.
Périphériques en option
Lecteur de bande magnétique (MSR) - Réf. Elo: E039290
