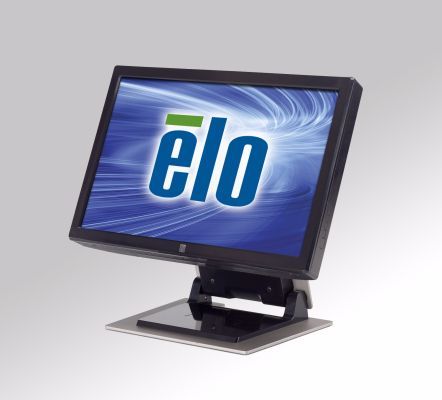

1900L 19" Touchscreen Monitor (Discontinued March 2015)
Comment acheter

Overview

Consisting of a glass scratch-resistant touchscreen, the 1900L desktop touchmonitor delivers benefits that combine the ultimate in optical qualities with a stylish, built-for-touch design, developed for use in public environments.

The 1900L is available with IntelliTouch® surface acoustic wave touch technology, a pure-glass touchscreen that provides superior optical performance.

Wide-aspect displays like the 1900L are easier to use and incorporate into the workplace than traditional desktop touchmonitors. The wide-screen format allows extra content on the screen and is quickly becoming preferred in corporate environments for publishing and dual window applications, and is popular in public venue environments due to a high-definition cinematic-like experience.

Typical applications include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.

Other features.
  • Wide-screen format provides more application space
  • Pure glass construction provides superior optical performance
  • "Designed for touch" features such as a stable tilt stand
  • Space-saving built-in speakers
  • Sleek, integrated design offers a stylish look for public venues
  • User-lockable on-screen display – designed for public access
  • Adjustable height stand provides the flexibility to be raised or lowered to meet the application's height requirements - can also be used in portrait mode
  • VESA compliance makes wall or arm-mounting possible
  • AC and DC power for maximum input flexibility
  • VGA and DVI video input (Asia/Pacific models without DVI)
  • Screen is resistant to water, dust, grease
  • One-time factory calibration for easy deployment and integration

Spécifications

  • Technique

    Référence(s)

    IntelliTouch (Dual serial/USB, Antiglare, Americas) - E653938

    Couleur du boîtier

    Dark Gray or Beige

    Technologie et fonctionnalités tactiles

    SAW (ondes acoustiques de surface IntelliTouch®) - Touche unique

    Taille de l’écran (diagonale)

    Diagonale de 19”, matrice active TFT LCD (LED)

    Format d’image

    16:10

    Zone active

    16.1" x 10.1" / 408mm x 255mm

    Résolution

    1440 x 900 at 60 Hz

    Autres résolutions prises en charge

    1680 x 1050 at 60 Hz
    1440 x 900 at 60 Hz
    1366 x 768 at 60 Hz
    1360 x 768 at 60 Hz
    1280 x 1024 at 60 or 75 Hz
    1280 x 960 at 60 Hz
    1280 x 768 at 65 Hz
    1152 x 864 at 75 Hz
    1024 x 768 at 60, 65, 72 or 75 Hz
    832 x 624 at 75 Hz
    800 x 600 at 56, 60 or 72 Hz
    720 x 400 at 70 Hz
    720 x 350 at 70 Hz
    640 x 480 at 60, 66 or 72 Hz

    Angle de vision

    Horizontal: ±80° ou 160° au total / Vertical: ±80° ou 160° au total

    Nombre de couleurs

    16.7 millions

    Luminosité (standard)

    LCD panel: 250 nits
    IntelliTouch: 225 nits

    Temps de réponse – total (standard)

    5 msec

    Taux de contraste

    1000:1

    Interface tactile

    Dual serial/USB

    Affichage à l’écran (OSD)

    Controls (side): menu, up, down, select, power
    Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, fill screen, color temperature, input video select, OSD H/V position, OSD timeout, recall defaults, sharpness, volume, mute, input video select
    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
    Lockouts: power, user controls

    Connecteur d’entrée audio

    3.5mm TRS jack

    Connecteur de sortie du casque

    3.5mm TRS jack

    Haut-parleurs

    Two 2W internal speakers

    Format vidéo d’entrée

    Analog VGA, DVI video (Asia/Pacific models without DVI)

    Connecteur du signal vidéo d’entrée

    Mini D-Sub 15-Pin VGA type, DVI-D connector

    Consommation électrique (standard)

    70W

    Alimentation électrique

    Internal AC, Optional external DC (power brick)

    Tension d’entrée

    AC: 100-240 VAC, 50/60 Hz; DC: 12 VDC ±5%

    Connecteur d’entrée

    AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.5 mm barrel diameter, 10 mm barrel length)

    Fréquence d’entrée

    Horizontal: 30-83 kHz / Vertical: 56-76 Hz

    Dimensions de l’écran (avec socle)

    17.7" x 15.0" x 11.8" / 449mm x 380mm x 300mm

    Dimensions du colis d’expédition

    19.75" x 10.06 x 23.63" / 500mm x 255mm x 600mm

    Poids (avec socle)

    19.9 lbs / 9.0 kg

    Poids (sans socle)

    13.2 lbs / 6.0 kg

    Poids d’expédition (avec socle)

    26.8 lbs / 12.2 kg

    Température de fonctionnement

    0°C to 40°C / 32°F to 104°F

    Température de stockage

    -20°C to 60°C / -4°F to 140°F

    Humidité

    Operating: 20%-80%
    Storage: 10%-90%
    noncondensing

    Altitude

    Operating: 0 to 3658m / 12,000 ft
    Storage: 0 to 12,192m / 40,000 ft

    Étanchéité

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    Temps moyen entre défaillances

    50 000 heures démontrées

    Options de mouvement du socle

    Tilt, removable, adjust height, pivot (landscape/portrait mode)

    Options de montage

    100 mm VESA mount
    Threaded-through mounting holes, under stand

    Autres caractéristiques

    Security lock receptacle

    Garantie

    3 ans

    Homologations et déclarations

    North America/Worldwide: USA UL, Canada cUL, Mexico NOM, CB
    South America: Argentina S-mark
    EMEA: Russia PCT
    Asia: Australia C-Tick, Japan VCCI, Koreak eK, Korea MIC, Taiwan BSMI
    Elo Declarations: RoHS, China RoHS, WEEE, IMERC, CE

    Câble d’alimentation CA

    For touchmonitors being shipped to the Americas, a North American AC power cable is included.
    For touchmonitors being shipped to EMEA, a European and a UK AC power cable are included.
    For touchmonitors being shipped to Asia, AC power cords for China, Taiwan and Korea are included.

    Jeu de câbles pour câbles de remplacement

    Elo p/n: E378229 (gray) or E410150 (beige), available at additional cost.

    Bloc d’alimentation électrique en option

    Elo p/n: E480320 - North America power brick
    Elo p/n: E252938 - European power brick
    Elo p/n: E872515 - UK power brick

    Stylet IntelliTouch en option

    D82064-000, available at additional cost.

    Câbles tactiles/vidéo

    Detachable touch, audio, power and video cables are included.

    Optional Accessories/Peripherals

    Desktop Stand (Dark gray) - Elo p/n: E647647
    Desktop Stand (Beige) - Elo p/n: E830716
