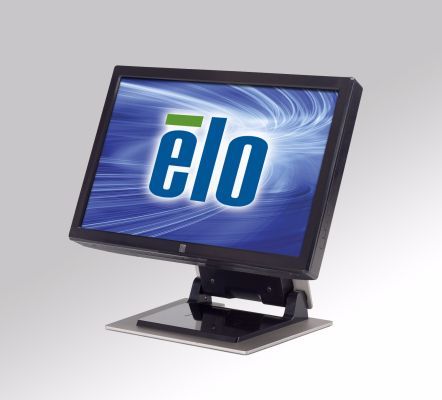

1900L 19" Touchmonitor (Discontinued March 2012)
Comment acheter

Overview

Consisting only of a glass overlay mounted in front of the LCD panel, the 1900L zero-bezel Acoustic Pulse Recognition (APR) delivers benefits that combine the ultimate in optical qualities with a stylish, easy to clean, seamless front face.

The 1900L is available in both zero-bezel APR, which senses touch on the display by recognizing the unique pattern of sounds, and standard-bezel IntelliTouch® surface acoustic wave touch technologies.

Wide-aspect displays like the 1900L are easier to use and incorporate into the workplace than traditional desktop touchmonitors. Wide-screen format displays allow extra content on screen and are ideal in corporate environments for spreadsheets, publishing, and dual-window applications.

Typical applications include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.

Other features.
  • Wide-screen format provides more application space
  • Pure glass construction provides superior optical performance
  • Uninterrupted surface area and easy-to-clean true-flat surface on the zero-bezel APR touchmonitor
  • "Designed for touch" features such as a stable tilt stand
  • Space-saving built-in speakers
  • Sleek, integrated design offers a stylish look for public venues
  • User-lockable on-screen display – designed for public access
  • Adjustable height stand provides the flexibility to be raised or lowered to meet the application's height requirements - can also be used in portrait mode
  • VESA compliance makes wall or arm-mounting possible
  • AC and DC power for maximum input flexibility
  • VGA and DVI video input (Asia/Pacific models without DVI)
  • Screen is resistant to water, dust, grease
  • One-time factory calibration for easy deployment and integration

Spécifications

  • Technique

    Référence(s)

    Acoustic Pulse Recognition (USB, Antiglare, Japan) - E212636
    Acoustic Pulse Recognition (USB, Antiglare, EMEA) - E223343
    Acoustic Pulse Recognition (USB, Antiglare, Asia/Pacific) - E245071
    Acoustic Pulse Recognition (USB, Antiglare, Americas) - E331465
    Acoustic Pulse Recognition (USB, Antiglare, Asia/Pacific) - E623274
    IntelliTouch (Dual serial/USB, Antiglare, Asia/Pacific) - E310042
    IntelliTouch (Dual serial/USB, Antiglare, EMEA) - E411370
    IntelliTouch (Dual serial/USB, Antiglare, Asia/Pacific) - E951484

    Couleur du boîtier

    Dark Gray or Beige

    Technologie et fonctionnalités tactiles

    SAW (ondes acoustiques de surface IntelliTouch®) - Touche unique
    Reconnaissance d'impulsion acoustique - Touche unique

    Taille de l’écran (diagonale)

    Diagonale de 19”, matrice active TFT LCD (LED)

    Format d’image

    16:10

    Zone active

    16.1" x 10.1" / 408mm x 255mm

    Résolution

    1440 x 900 at 60 Hz

    Autres résolutions prises en charge

    1680 x 1050 at 60 Hz
    1440 x 900 at 60 Hz
    1366 x 768 at 60 Hz
    1360 x 768 at 60 Hz
    1280 x 1024 at 60 or 75 Hz
    1280 x 960 at 60 Hz
    1280 x 768 at 65 Hz
    1152 x 864 at 75 Hz
    1024 x 768 at 60, 65, 72 or 75 Hz
    832 x 624 at 75 Hz
    800 x 600 at 56, 60 or 72 Hz
    720 x 400 at 70 Hz
    720 x 350 at 70 Hz
    640 x 480 at 60, 66 or 72 Hz

    Angle de vision

    Horizontal: ±80° ou 160° au total / Vertical: ±80° ou 160° au total

    Nombre de couleurs

    16.7 millions

    Luminosité (standard)

    LCD panel: 250 nits
    Acoustic Pulse Recognition: 225 nits
    IntelliTouch: 225 nits

    Temps de réponse – total (standard)

    5 msec

    Taux de contraste

    1000:1

    Touch Interfaces

    USB: E212636, E223343, E245071, E331465, E623274
    Dual serial/USB: E310042, E411370, E951484

    Commandes d’utilisation

    Controls (side): menu, up, down, select, power
    Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, fill screen, color temperature, input video select, OSD H/V position, OSD timeout, recall defaults, sharpness, volume, mute, input video select
    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
    Lockouts: power, user controls

    Connecteur d’entrée audio

    3.5mm TRS jack

    Connecteur de sortie du casque

    3.5mm TRS jack

    Haut-parleurs

    Two 2W internal speakers

    Format vidéo d’entrée

    Analog VGA, DVI video (Asia/Pacific models without DVI)

    Connecteur du signal vidéo d’entrée

    Mini D-Sub 15-Pin VGA type, DVI-D connector

    Consommation électrique (standard)

    70W

    Alimentation électrique

    Internal AC, Optional external DC (power brick)

    Tension d’entrée

    AC: 100-240 VAC, 50/60 Hz; DC: 12 VDC ±5%

    Connecteur d’entrée

    AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.5 mm barrel diameter, 10 mm barrel length)

    Fréquence d’entrée

    Horizontal: 30-83 kHz / Vertical: 56-76 Hz

    Dimensions de l’écran (avec socle)

    17.7" x 15.0" x 11.8" / 449mm x 380mm x 300mm

    Dimensions du colis d’expédition

    19.75" x 10.06" x 23.63" / 500mm x 255mm x 600mm

    Poids (avec socle)

    19.9 lbs / 9.0 kg

    Poids (sans socle)

    13.2 lbs / 6.0 kg

    Poids d’expédition (avec socle)

    26.8 lbs / 12.2 kg

    Température de fonctionnement

    0°C to 40°C / 32°F to 104°F

    Température de stockage

    -20°C to 60°C / -4°F to 140°F

    Humidité

    Operating: 20%-80%
    Storage: 10%-90%
    noncondensing

    Altitude

    Operating: 0 to 3658m / 12,000 ft
    Storage: 0 to 12,192m / 40,000 ft

    Étanchéité

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    Temps moyen entre défaillances

    50 000 heures démontrées

    Options de mouvement du socle

    Tilt, removable, adjust height, pivot (landscape/portrait mode)

    Options de montage

    100 mm VESA mount
    Threaded-through mounting holes, under stand

    Autres caractéristiques

    Security lock receptacle

    Garantie

    3 ans

    Homologations et déclarations

    North America/Worldwide: USA UL, Canada cUL, Mexico NOM, CB
    South America: Argentina S-mark
    EMEA: Russia PCT
    Asia: Australia C-Tick, China CCC, Japan VCCI, Koreak eK, Korea MIC, Taiwan BSMI
    Elo Declarations: RoHS, China RoHS, WEEE, IMERC, CE

    Câble d’alimentation CA

    For touchmonitors being shipped to the Americas, a North American AC power cable is included.

    For touchmonitors being shipped to EMEA, a European and a UK AC power cable are included.

    For touchmonitors being shipped to Asia, AC power cords for China, Taiwan and Korea are included.

    Jeu de câbles pour câbles de remplacement

    E378229 - gray
    E410150 - beige, available at additional cost.

    Bloc d’alimentation électrique en option

    E480320 - North America
    E252938 - European
    E872515 - UK
    E860910 - China

    Stylet IntelliTouch en option

    D82064-000, available at additional cost.

    Optional Acoustic Pulse Recognition (APR) Stylus Pen

    E963860, available at additional cost.

    Câbles tactiles/vidéo

    Detachable touch, audio, power and video cables are included.

    Socle en option

    Desktop Stand (Dark gray) - Elo P/N: E647647
    Desktop Stand (Beige) - Elo P/N: E830716
