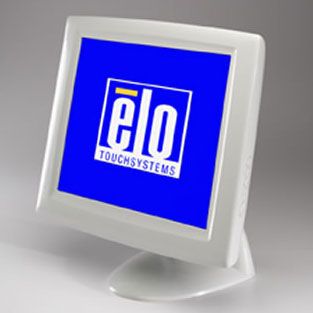

1827L 18.1" Touchscreen Monitor (Discontinued January 2004)
Overview
The 1827L features a very bright panel with a 170°x170° viewing angle and support for both analog and digital (DVI-D) video inputs. This "designed for touch" monitor has a choice of touch technologies and is extremely stable when touched. Besides being a top quality LCD, the 1825L carries UL/cUL 2601-1/C22.2 No. 601.1, CE MDD EN60601-1, and TÜV medical certifications for North America and Europe, and can be activated with a gloved hand-a critical capability for medical applications.
Other features.
- High quality panel with 170°x170° viewing angle
- Analog and digital (DVI-D) video inputs
- "Designed for touch" features such as a stable tilt base (-5° from vertical to 90°/horizontal)
- Cables hidden from user's view
- Mounting holes on base bottom for tabletop security
- Base removable or reversible for wall mounting, plus VESA mounting option
- Built-in speakers located in display head
- Available with AccuTouch® Five-Wire Resistive Technology or IntelliTouch® Surface Wave Technology and serial or USB interface
- Sealed touchscreen
- UL2601 and CE MDD medical approvals
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Long-lasting product cycle
- Worldwide agency approvals
Spécifications
-
Technique
Référence(s)
AccuTouch (Antiglare, Worldwide) - A70125-001
AccuTouch (Antiglare, Worldwide) - A06521-001
IntelliTouch (Antiglare, Worldwide) - A50146-001
IntelliTouch (Antiglare, Worldwide) - A46947-001Couleur du boîtier
Beige
Technologie et fonctionnalités tactiles
AccuTouch® - Résistant à 5 fils - Touche unique
SAW (ondes acoustiques de surface IntelliTouch®) - Touche uniqueTaille de l’écran (diagonale)
18.1" diagonal, Active matrix TFT LCD
Format d’image
4:3
Zone active
14.1" x 11.3" / 359 mm x 287mm
Résolution
1280 x 1024 at 75 Hz
Autres résolutions prises en charge
1280 x 1024 at 60 or 75Hz
1280 x 960 at 60Hz
1152 x 864 at 75Hz
1024 x 768 at 65Hz (Sun)
1024 x 768 at 60, 70, or 75Hz (VESA)
832 x 624 at 75Hz (Mac)
800 x 600 at 56, 60, 72, or 75Hz (VESA)
720 x 400 at 70Hz)
720 x 350 at 70Hz
640 x 480 at 72 or 75Hz (VESA)
640 x 480 at 66Hz (Mac)
640 x 480 at 60HzAngle de vision
Horizontal: ±85° ou 170° au total / Vertical: ±85° ou 170° au total
Nombre de couleurs
16.7 millions
Luminosité (standard)
LCD panel: 235 nits
AccuTouch: 188 nits
IntelliTouch: 210 nitsTemps de réponse – total (standard)
Tr: 16 msec; Tf: 7 msec
Taux de contraste
400:1
Format vidéo d’entrée
Analog (no proprietary video card needed); Digital Video Input (DVI-D)
Connecteur du signal vidéo d’entrée
Mini D-Sub 15-Pin; DVI-D 24 pin
Interface tactile
Serial: A70125-000, A50146-000
USB: A06521-000, A46947-000Alimentation électrique
External power supply,
Tension d’entrée
100-240 VAC, 50-60 Hz
Fréquence d’entrée
Horizontal: 31.5-80 kHz / Vertical: 56.3-75 Hz
Consommation électrique (standard)
50 W max.
Haut-parleurs
Two built-in, rear-facing 1W speakers in display head
Affichage à l’écran (OSD)
OSD lockouts for power and user controls
OSD extras include volume, treble, bass, balanceCommandes d’utilisation
Side: menu, up, down, select, power
OSD: contrast, brightness, H/V position, color, temperature, clock, phase, recall, OSD time
Languages: English, German, Spanish, Italian, Japanese, French
OSD disable/enable: power, volume, and/or OSD menuDimensions de l’écran (avec socle)
17.5" x 17.5" x 9.4" / 444mm x 445mm x 238mm
Poids (non emballé)
15.9 lbs / 7.2 kg
Poids (emballé)
21.8 lbs / 9.9 kg
Température de fonctionnement
0°C to 40°C
Température de stockage
-20°C to 60°C
Humidité
Operating: 20-85%
Storage: 5%-95%
noncondensingOptions de montage
100 mm or 75 mm M4 VESA mount
100 mm M5 threaded holes on base bottom for table top security
Removable base
Reversible stand for wall mounting
Stand rotates from -5° (from vertical) to 90° (horizontal)Durée de vie du rétroéclairage
40,000 hours to half brightness
Garantie
3 ans
Homologations et déclarations
FCC, VCCI, C-Tick, BSMI Class B, UL, cUL Medical UL 2601-1, C22.2 No. 601.1 (IPX0), CE Medical Device Directive EN60601-1, TÜV Medical IEC 60601-1, MPRII, CB Medical IEC 60601-1. Includes EMC requirements EN, IEC 60601-1-2.
Câbles d’alimentation
A North America power cable is included with touchmonitors shipped from the U.S. For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying - Elo p/n: 276875-000.
