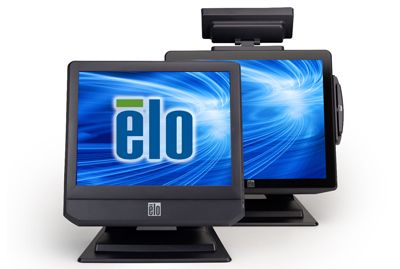

B1 Rev.A Touchcomputer (Discontinued June 2013)

Spécifications

• Technique

  ---

  Référence(s)

  15-inch AccuTouch (Antiglare, Worldwide) - E029803
  17-inch AccuTouch (Antiglare, Worldwide) - E958917
  15-inch AccuTouch (Antiglare, Worldwide) - E708010
  17-inch AccuTouch (Antiglare, Worldwide) - E583520
  15-inch AccuTouch (Antiglare, Worldwide) - E981814
  17-inch AccuTouch (Antiglare, Worldwide) - E064148
  15-inch AccuTouch (Antiglare, Worldwide) - E368362
  17-inch AccuTouch (Antiglare, Worldwide) - E471288
  15-inch AccuTouch (Antiglare, Worldwide) - E623769
  17-inch AccuTouch (Antiglare, Worldwide) - E990125
  15-inch AccuTouch (Antiglare, Worldwide) - E855877
  17-inch AccuTouch (Antiglare, Worldwide) - E849636
  15-inch IntelliTouch (Antiglare, Worldwide) - E920670
  17-inch IntelliTouch (Antiglare, Worldwide) - E300184
  15-inch IntelliTouch (Antiglare, Worldwide) - E833576
  17-inch IntelliTouch (Antiglare, Worldwide) - E724568
  15-inch IntelliTouch (Antiglare, Worldwide) - E727138
  17-inch IntelliTouch (Antiglare, Worldwide) - E382821
  15-inch IntelliTouch (Antiglare, Worldwide) - E169698
  17-inch IntelliTouch (Antiglare, Worldwide) - E340499
  15-inch IntelliTouch (Antiglare, Worldwide) - E944374
  17-inch IntelliTouch (Antiglare, Worldwide) - E445066
  15-inch IntelliTouch (Antiglare, Worldwide) - E003227
  17-inch IntelliTouch (Antiglare, Worldwide) - E074781
  15-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E813311
  17-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E814870
  15-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E352633
  17-inch Acoustic Pulse Recognition (Antiglare, Worldwide) -
  E386667
  15-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E848784
  17-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E239346
  15-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E065399
  17-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E554901
  15-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E826828
  17-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E922233
  15-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E765212
  17-inch Acoustic Pulse Recognition (Antiglare, Worldwide) -
  E017356


  Couleur du boîtier

  Gris foncé

  Technologie et fonctionnalités tactiles

  AccuTouch® - Résistant à 5 fils - Touche unique
  SAW (ondes acoustiques de surface IntelliTouch®) - Touche unique
  Reconnaissance d'impulsion acoustique - Touche unique

  Processeur

  Intel 1.66GHz Atom Dual-Core D510
  1MB L2 Cache
  533MHz System Bus

  BIOS

  Phoenix

  Mémoire vive (RAM)

  1GB Low-Profile DDR2 DIMM
  on 1 of 2 slots
  (Expandable to 4GB maximum on 2 slots)

  Disque dur

  160GB 2.5” SATA HDD

  Jeu de puces

  Intel NM10 Express

  Taille de l’écran (diagonale)

  Diagonale de 15”, matrice active TFT LCD (LED)

  Boutons de commande

  Controls (bottom): menu, up, down, select, power
  Settings: brightness, contrast, phase, auto adjust, H-position, V-position, clock, sharpness, RGB, OSD H-position, OSD V-position, OSD time, OSD language, recall, power button
  Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
  Lockouts: user controls

  Format d’image

  4:3

  Zone active

  12.0" x 9.0" / 304.1mm x 228.1mm

  Résolution

  1024 x 768 @ 60Hz

  Nombre de couleurs

  16.7 millions

  Luminosité (standard)

  LCD panel: 250 nits
  AccuTouch: 200 nits
  Acoustic Pulse Recognition: 225 nits
  IntelliTouch: 225 nits

  Temps de réponse – total (standard)

  8 msec

  Taux de contraste

  700:1

  Angle de vision

  Horizontal: ±70° ou 140° au total / Vertical: 65°/60° ou 125° au total

  Ports USB

  6 x USB 2.0 (4 on I/O, 1 x USB Side Access, 1 x USB Hidden/Protected)
  Additional internal ports available for optional Elo peripherals

  Ports série

  2 x USB-to-Serial RS-232 (standard)

  Port Ethernet

  1 x LAN RJ45 (Gigabit)

  Sans fil

  Optional USB wireless kit available (802.11b/g/n)

  Port de tiroir-caisse

  Optional cash drawer kit available (12V/24V default; selectable via jumper)

  Sortie vidéo supplémentaire

  Optional 2nd VGA port expansion card

  Ports audio

  1 x 3.5mm line-in
  1 x 3.5mm line-out
  1 x 3.5mm mic-in

  Haut-parleurs

  Two 2W internal speakers

  Systèmes d'exploitation

  Sans système d'exploitation
  Windows XP Professional Service Pack 3 (32-bit only)
  Windows POSReady 2009
  Windows 7 Professional (32-bit only)

  Langues

  Windows XP avec 24 groupes de langues; Windows 7 avec 35 groupes de langues
  Windows POSReady 2009 – 32 Language groups

  Alimentation électrique

  External 12VDC universal-type power supply brick
  AC input voltage: 100-240VAC
  Input frequency: 50-60Hz
  Maximum output power: 150W (Max draw: 170W)

  Tension d’entrée

  100-240VAC

  Consommation électrique (standard)

  36W

  Dimensions maximales de l’écran tactile avec socle

  14.0" x 14.3" x 10.5" / 354mm x 363mm x 267mm

  Dimensions maximales de l’écran tactile sans socle

  14.0" x 14.3" x 14.1" / 355mm x 364mm x 359mm

  Dimensions du colis d’expédition

  17.4" x 21.9" x 10.2" / 443mm x 555mm x 258mm

  Poids (avec socle)

  19.0 lbs / 8.6 kg

  Poids (sans socle)

  14.2 lbs / 6.4 kg

  Poids (emballé)

  27.6 lbs / 12.5 kg

  Température de fonctionnement

  32°F to 95°F / 0°C to 35°C

  Température de stockage

  -4°F to 140°F / -20°C to 60°C

  Humidité

  Operating: 20% to 80%
  Storage: 5% to 95%

  Homologations et déclarations

  UL/cUL, CE, CCC, NOM, AR S-Mark, FCC, GOST-R, C-Tick, TUV, VCCI

  Horloge temps réel

  Pile lithium-ion

  Temps moyen entre défaillances

  50 000 heures démontrées

  Options de montage

  100mm VESA mount or secure base to tabletop or desktop

  Garantie

  3 ans

  Étanchéité

  Touchscreen sealed to bezel (IntelliTouch)
  Touchscreen sealed to sub-bezel (AccuTouch, APR)
  Touchscreen sealed to LCD (all)

  Câbles d’alimentation

  North American and European power cables included

  Autres caractéristiques

  Serviceable internal components
  Removable base with 100mm VESA mountingM
  Threaded holes on bottom of base for mounting

  Options d’extension

  Wireless Adapter (USB, 802.11b/g/n)
  Cash Drawer Port (12V/24V) expansion card
  Second VGA Port expansion card
  Modem PCI-E Card
  Parallel Port PCI-E Card

  Alimentation électrique CC de remplacement

  12V DC power brick, part number E806884, is available at additional cost.

  Stylet IntelliTouch en option

  D82064-000, available at additional cost.

  Optional Acoustic Pulse Recognition (APR) Stylus Pen

  E963860, available at additional cost

  Optional Accessories/Peripherals

  Second 160GB Hard Disk Drive (HDD)
  64GB Solid State Drive (SSD)
  Second HDD/SSD Mounting Bracket Kit only
  1GB Low-Profile DDR2 Memory DIMM Kit
  2GB Low-Profile DDR2 Memory DIMM Kit
  4GB Low-Profile DDR2 Memory DIMM Kit
  Magnetic Stripe Reader- Elo P/N: E545781
  Customer Display (2x20 VFD) - Elo P/N: E879762
  Biometric Fingerprint Reader (FPR) - Elo P/N: E375206

  Magnetic Stripe Reader (MSR)

  The MSR is a USB 2.0 device that reads all three data stripes on standard credit cards or driver's licenses conforming to ISO/ANSI standards. The MSR has foreign language capability. The MSR is powered from the USB port; no external power is needed. The MSR features are:
  - Reads up to 3 tracks of information
  - Bidirectional swipe reading
  - Superior reading of high jitter, scratched, and worn

  MagStripe cards
  - Reliable for over 1,000,000 card swipes
  - Reads ISO7811, AAMVA, and most other card data formats
  - PC software makes configuration changes easy
  - Swipe speeds from 3 to 60 inches per second
  - Interfaces: USB-IDTech-HID
  - Fully supports USB 2.0
