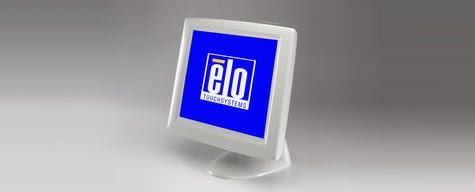

1727L 17" Touchscreen Monitor (Discontinued November 2006)
Comment acheter

Overview

The 1727L was designed from a blank sheet of paper to address the key needs of touch applications, resulting in a product that can truly be called "designed for touch." It has a unique combination of flexibility, reliability, performance, ease-of-use and installation, all with a distinctive visual appeal.

Other features.
  • High quality panel with 140°x140° viewing angle
  • Analog and digital (DVI-D) video inputs
  • "Designed for touch" features such as a stable tilt base (-5° from vertical to 90°/horizontal)
  • Cables hidden from user's view
  • Mounting holes on base bottom for tabletop security
  • Base removable or reversible for wall mounting, plus VESA mounting option
  • Built-in speakers located in display head
  • Available with AccuTouch Five-Wire Resistive Technology or IntelliTouch Surface Wave Technology and dual serial/USB interface
  • Sealed touchscreen
  • Controls on the side rather than the front, plus lockout function for public use
  • Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
  • Long-lasting product cycle
  • Worldwide agency approvals

Spécifications

  • Technique

    Référence(s)

    AccuTouch (Antiglare, Worldwide) - 227258-001
    IntelliTouch (Antiglare, Worldwide) - 869890-001

    Couleur du boîtier

    Beige

    Technologie et fonctionnalités tactiles

    AccuTouch® - Résistant à 5 fils - Touche unique
    SAW (ondes acoustiques de surface IntelliTouch®) - Touche unique

    Taille de l’écran (diagonale)

    Diagonale de 17”, matrice active TFT LCD (LED)

    Format d’image

    5:4

    Zone active

    13.3" x 10.6" / 338mm x 270mm

    Résolution

    1280 x 1024

    Autres résolutions prises en charge

    1280 x 1024 at 60 or 75 Hz
    1280 x 960 at 60 Hz
    1152 x 864 at 75 Hz
    1024 x 768 at 60, 65 Hz (Sun), 70 or 75 Hz
    832 x 624 at 75 Hz (Mac)
    800 x 600 at 56, 60, 72 or 75 Hz
    720 x 400 at 70 Hz
    640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz

    Angle de vision

    Horizontal: ±70° or 140° total / Vertical: 60/67° or 127° total

    Nombre de couleurs

    16.2 million with dithering (6 bit)

    Luminosité (standard)

    LCD panel: 260 nits
    AccuTouch: 213 nits
    IntelliTouch: 239 nits

    Temps de réponse – total (standard)

    25 msec

    Taux de contraste

    450:1

    Format vidéo d’entrée

    Analog (no proprietary video card needed); Digital Video Input (DVI-D)

    Connecteur du signal vidéo d’entrée

    Mini D-Sub 15-Pin; DVI-D

    Interface tactile

    Dual serial/USB: 227258-001, 869890-001

    Alimentation électrique

    External power supply, 100-240 VAC, 50-60 Hz

    Tension d’entrée

    11.4-19.95 VDC; Current (12 VDC): 4A max; Current (19 VDC): 2.65A max.

    Fréquence d’entrée

    Horizontal: 31.5-80 kHz / Vertical: 56.3-75 Hz

    Sync Types

    Separate horizontal and vertical sync, composite sync and sync-on-green

    Consommation électrique (standard)

    50 W max.

    Haut-parleurs

    Two watt/channel speakers located in display head

    Affichage à l’écran (OSD)

    OSD lockouts for power and user controls
    OSD extras include volume, treble, bass, balance

    Commandes d’utilisation

    Side: menu, up, down, select, power
    OSD: contrast, brightness, H/V position, recall defaults, color temperature, volume, sharpness, phase, clock, OSD position, OSD time, auto adjust, input select (analog or digital)
    Languages: English, German, Spanish, Japanese, French
    OSD disable/enable: power, volume, and/or OSD menu

    Dimensions de l’écran (avec socle)

    17.1" x 16.9" x 9.62" / 434mm x 430mm x 244mm

    Poids (sans socle)

    15.08 lb / 6.84 kg

    Poids (non emballé)

    20.92 lb / 9.49 kg

    Poids (emballé)

    27.42 lb / 12.44 kg

    Température de fonctionnement

    0°C to 40°C

    Température de stockage

    -20°C to 60°C

    Humidité

    Operating: 20%-80%; Storage: 10%-90%; noncondensing

    Étanchéité

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    Options de montage

    100 mm or 75 mm M4 VESA mount
    100 mm M5 threaded holes on base bottom for table top security
    Removable base
    Reversible stand for wall mounting
    Stand rotates from -5° (from vertical) to 90° (horizontal)
    Optional stability plate

    Durée de vie du rétroéclairage

    Typical 40,000 hours to half brightness

    Garantie

    3 ans

    Homologations et déclarations

    UL, cUL, FCC, IC, CE, TÜV-GS, VCCI, C-Tick, MPR II

    Câbles d’alimentation

    A North American power cable and a European power cable are included. For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying
    Elo p/n: 276875-000.

    Bloc d’alimentation électrique en option

    Elo p/n: E219331. Available at additional cost.

    Câbles tactiles/vidéo

    Detachable touch and video cables are included.

    Stability Plate

    Mounts to the pedestal of the monitor to increase stability. Elo p/n: D47582-000, available at additional cost.
