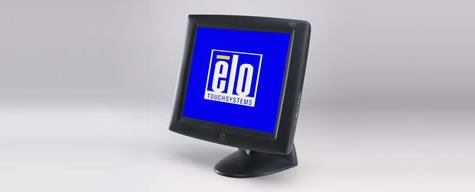

1725L 17" Touchscreen Monitor (Discontinued May 2006)
Overview
The 1725L was designed from a blank sheet of paper to address the key needs of touch applications, resulting in a product that can truly be called "designed for touch." It has a unique combination of flexibility, reliability, performance, ease-of-use and installation, all with a distinctive visual appeal.
Other features.
- High quality panel with 140°x140° viewing angle
- Analog and digital (DVI-D) video inputs
- "Designed for touch" features such as a stable tilt base (-5° from vertical to 90°/horizontal)
- Cables hidden from user's view
- Mounting holes on base bottom for tabletop security
- Base removable or reversible for wall mounting, plus VESA mounting option
- Built-in speakers located in display head
- Available with AccuTouch Five-Wire Resistive Technology, IntelliTouch Surface Wave Technology or Surface Capacitive Technology and dual serial/USB interface
- Sealed touchscreen
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Long-lasting product cycle
- Worldwide agency approvals
Spécifications
-
Technique
Référence(s)
IntelliTouch (Antiglare, Worldwide) - 442072-001
Couleur du boîtier
Gris foncé
Technologie et fonctionnalités tactiles
SAW (ondes acoustiques de surface IntelliTouch®) - Touche unique
Taille de l’écran (diagonale)
Diagonale de 17”, matrice active TFT LCD (LED)
Format d’image
5:4
Zone active
13.3" x 10.6" / 338mm x 270mm
Résolution
1280 x 1024
Autres résolutions prises en charge
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65 Hz (Sun), 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 HzAngle de vision
Horizontal: ±70° or 140° total / Vertical: 60/67° or 127° total
Nombre de couleurs
16.2 million with dithering (6 bit)
Luminosité (standard)
LCD panel: 260 nits
IntelliTouch: 239 nitsTemps de réponse – total (standard)
25 msec
Taux de contraste
450:1
Format vidéo d’entrée
Analog (no proprietary video card needed); Digital Video Input (DVI-D)
Connecteur du signal vidéo d’entrée
Mini D-Sub 15-Pin; DVI-D
Alimentation électrique
External power supply, 100-240 VAC, 50-60 Hz
Tension d’entrée
11.4-19.95 VDC; Current (12 VDC): 4A max; Current (19 VDC): 2.65A max.
Fréquence d’entrée
Horizontal: 31.5-80 kHz / Vertical: 56.3-75 Hz
Sync Types
Separate horizontal and vertical sync, composite sync and sync-on-green
Consommation électrique (standard)
50 W max.
Haut-parleurs
Two watt/channel speakers located in display head
Affichage à l’écran (OSD)
OSD lockouts for power and user controls
OSD extras include volume, treble, bass, balanceCommandes d’utilisation
Side: menu, up, down, select, power
OSD: contrast, brightness, H/V position, recall defaults, color temperature, volume, sharpness, phase, clock, OSD position, OSD time, auto adjust, nput select (analog or digital)
Languages: English, German, Spanish, Japanese, French
OSD disable/enable: power, volume, and/or OSD menuDimensions de l’écran (avec socle)
17.1" x 16.9" x 9.62" / 434mm x 430mm x 244mm
Poids (avec socle)
15.08 lb / 6.84 kg
Poids (non emballé)
20.92 lbs / 9.49 kg
Poids (emballé)
27.42 lbs / 12.44 kg
Température de fonctionnement
0°C to 40°C
Température de stockage
-20°C to 60°C
Humidité
Operating: 20%-80%; Storage: 10%-90%; noncondensing
Options de montage
100 mm or 75 mm M4 VESA mount
100 mm M5 threaded holes on base bottom for table top security
Removable base
Reversible stand for wall mounting
Stand rotates from -5° (from vertical) to 90° (horizontal)
Optional stability plateDurée de vie du rétroéclairage
Typical 40,000 hours to half brightness
Garantie
3 ans
Homologations et déclarations
UL, cUL, FCC, IC, CE, TÜV-GS, VCCI, C-Tick, MPR II
Câbles d’alimentation
A North American power cable and a European power cable are included. For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying
Elo p/n: 276875-000.Bloc d’alimentation électrique en option
Elo p/n: E785134. Available at additional cost.
Câbles tactiles/vidéo
Detachable touch and video cables are included.
Stability Plate
Mounts to the pedestal of the monitor to increase stability. Elo p/n: D47582-000. Available at additional cost.
