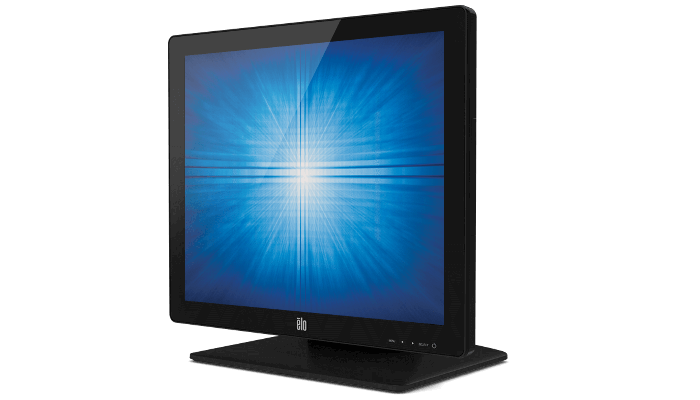

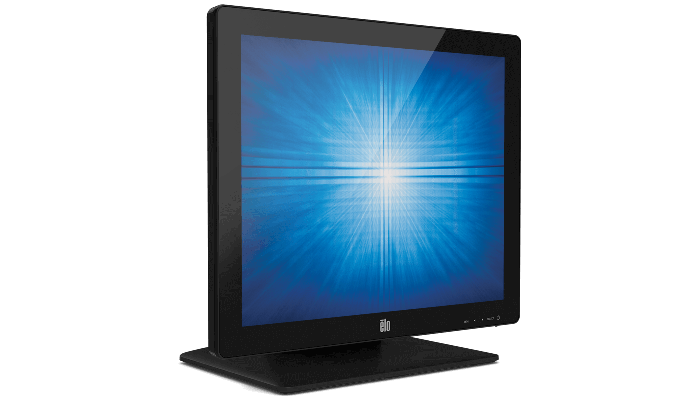

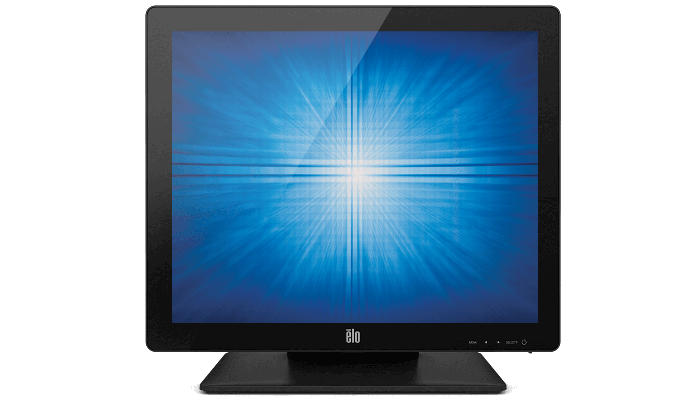

1717L 17" Touchscreen Monitor (Discontinued December 2018)
Comment acheter

Overview

The Elo 1717L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1717L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.

Integrated touch.

The 17-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications. For a 10-touch tablet like experience, TouchPro® PCAP offers a clean edge-to-edge glass design perfect for multi-user interaction with fast and extremely sensitive responses right out of the box.

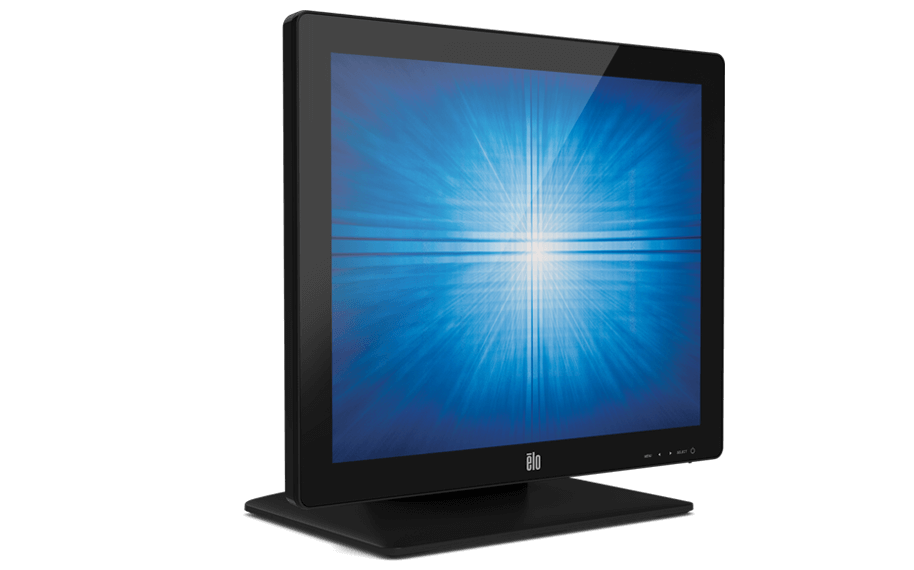

MSR ready.

The 1717L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Flexible mounting.

The Elo 1717L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.
Other features.
  • Sleek and thin design with built-for-touch reliability
  • Flexible and space-saving
  • 60% Energy savings using LED technology
  • Sealed touchscreen against dirt, dust and liquids
  • Removable base and mounting options including VESA, wall and pole-mounting
  • USB and RS232 serial connections
  • Typical power consumption: 20W, internal and external power options
  • Three-year standard warranty

Spécifications

  • Technique

    Référence(s)

    PCAP Black (Asia-Pacific & Japan) - E824217

    Couleur du boîtier

    Blanc ou noir

    Technologie et fonctionnalités tactiles

    PCAP (projeté capacitif) - 10 touches

    Taille de l’écran (diagonale)

    Diagonale de 17”, matrice active TFT LCD (LED)

    Épaisseur de l’écran

    1.7" / 43mm panel depth

    Format d’image

    5:4

    Zone active

    13.3" x 10.64" / 337.92mm x 270.34mm

    Résolution

    1280 x 1024

    Autres résolutions prises en charge

    640 x 480 @ 60Hz, 75Hz
    720 x 400 @ 70Hz
    800 x 600 @ 56Hz, 60Hz, 75Hz
    1024 x 768 @ 60Hz, 75Hz
    1280 x 1024 @ 60Hz, 75Hz

    Angle de vision

    Horizontal: ±85° ou 170° au total / Vertical: ±80° ou 160° au total

    Nombre de couleurs

    16.7 millions

    Luminosité (standard)

    LCD panel: 250 nits
    PCAP: 225 nits

    Temps de réponse – total (standard)

    5 msec

    Taux de contraste

    1000:1

    Interface tactile

    Serial (RS232) and USB

    Affichage à l’écran (OSD)

    Accessible through switches along the bottom:

    Controls: Menu, Up, Down, Select

    Settings: Contrast, Brightness, H position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color, Temperature, Clock, Phase, OSD timeout, OSD Language, Recall, Defaults

    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese

    Lockouts: OSD, Power

    Format vidéo d’entrée

    Analog VGA on Female DB-15 connector

    Fréquence vidéo d’entrée

    Horizontal: 31.5-80 kHz
    Vertical: 56-75 Hz

    Consommation électrique (standard)

    Monitor Only
    ON: 16W
    SLEEP: 3.0W
    OFF: 0.5W

    Tension d’entrée

    AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ±5%

    Connecteur d’entrée

    AC: IEC 60320 C6 / DC: Coaxial power jack (2.0 mm pin diameter, 6.4 mm barrel diameter)

    Connecteur d’entrée de l’adaptateur

    IEC 60320 C14

    Plage de tension d’entrée de l’adaptateur

    100-240VAC, 50/60Hz

    Dimensions de l’écran (avec socle)

    15.43" x 8.38" x 14.24" / 391.9mm x 215.4mm x 361.6mm

    Dimensions du colis d’expédition

    20.12" x 9.17" x 20.08" / 511mm x 233mm x 510mm

    Poids (non emballé)

    11.9 lbs / 5.4 Kg

    Poids (emballé)

    18.3 lbs / 8.3 Kg

    Température de fonctionnement

    0°C to 40°C / 32°F to 104°F

    Température de stockage

    20°C to 60°C / -4°F to 140°F

    Humidité

    Operating: 20% to 80%; Storage: 10% to 90%

    Étanchéité

    Touchscreen sealed to bezel; Touchscreen sealed to LCD

    Temps moyen entre défaillances

    50 000 heures démontrées

    Options de montage

    75 mm VESA mount
    Capped through-mount holes

    Autres caractéristiques

    Security lock receptacle

    Garantie

    3 ans

    Options de service étendues

    4 year warranty coverage - Elo P/N: E898247
    5 year warranty coverage - Elo P/N: E898449
    3 year warranty coverage + AUR - Elo P/N: E898648
    4 year warranty coverage + AUR - Elo P/N: E894921
    5 year warranty coverage + AUR - Elo P/N: E895125

    Homologations et déclarations

    UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE

    Contenu du colis

    QIG, Japan Class-B TM info sheet, User Manual CD, VGA cable (DB-15 male to DB-15 male), USB cable (USB Type A plug to USB Type B plug), power cable, IEC 60320-C5 to NA/EU plug, Stand base assembly, Filler Plate

    Alimentation électrique CC de remplacement

    The monitor may be powered with DC voltage. An optional 12V DC power brick, Elo P/N: E005277, is available at additional cost.

    Câble d’alimentation CA

    North American & EU power cables included. UK AC power cables included with P/Ns available for EMEA.

    China: E030476
    Japan: E849156 (3-pin to 2-pin adapter: E351985
    UK: E235317
    Taiwan: E637694

    Stylet pour stylet PCAP en option

    E066148

    Câbles tactiles/vidéo

    Detachable touch and video cables are included.

    Périphériques en option

    Lecteur de bande magnétique (Noir) - Réf. Elo : E500356

    Stands, montures et kits

    1717L VESA Plaque de montage (Noir) - Réf. Elo : E000405
    Support de montage pour écran 0700L dirigé vers l’arrière: E332358
    Stand de remplacement (Blanc) pour 1717L - Réf. Elo : E061177
    Stand de remplacement (Noir) pour 1717L - Réf. Elo : E904304
