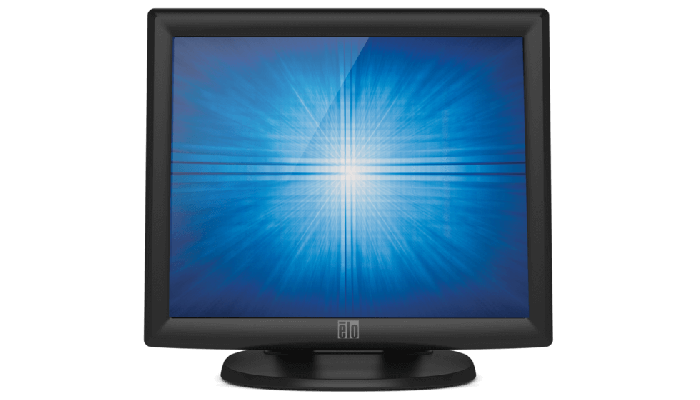

1715L 17" Touchscreen Monitor (Discontinued April 2006)
Overview
The 1715L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor.
Other features.
- Entry-level monitor with Elo quality
- "Designed for touch" features such as a stable tilt base
- Long-lasting product cycle
- Available with IntelliTouch® Surface Wave Technology
- Sealed touchscreen
- Dual serial/USB interface
- Removable base and VESA mounting option
- Mounting holes on base bottom for tabletop security
- Controls on the side rather than the front, plus lockout function for public use
- Digital on-screen display (OSD)
- Worldwide agency approvals
Spécifications
-
Technique
Référence(s)
IntelliTouch (Antiglare, Worldwide) - C20990-000
Couleur du boîtier
Gris foncé
Technologie et fonctionnalités tactiles
SAW (ondes acoustiques de surface IntelliTouch®) - Touche unique
Taille de l’écran (diagonale)
Diagonale de 17”, matrice active TFT LCD (LED)
Format d’image
5:4
Zone active
13.3" x 10.6" / 338mm x 270mm
Résolution
1280 x 1024
Autres résolutions prises en charge
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65 Hz (Sun), 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 HzAngle de vision
Horizontal: ±70° or 140° total / Vertical: 63°/60° or 123° total
Nombre de couleurs
16.2 millions
Luminosité (standard)
LCD panel: 250 nits
IntelliTouch: 230 nitsTemps de réponse – total (standard)
25 msec
Taux de contraste
450:1
Interface tactile
Dual serial/USB: C20990-000
Affichage à l’écran (OSD)
Digital OSD
Commandes d’utilisation
OSD buttons: menu, up, down, select, power
OSD: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall,
Languages: English, German, Spanish, Japanese, French
OSD disable/enable: power, OSD menuFormat vidéo d’entrée
RGB analog only
Connecteur du signal vidéo d’entrée
Mini D-Sub 15-Pin VGA type
Consommation électrique (standard)
50 W max
Alimentation électrique
Internal, with jack to accept power from optional external brick
Tension d’entrée
AC: 100-240 VAC, 50/60 Hz; DC: +12 VDC ±5%
Fréquence d’entrée
Horizontal: 31.5-80 kHz / Vertical: 56.3-75 Hz
Sync Types
Separate horizontal and vertical sync, composite sync and sync-on-green
Dimensions de l’écran (avec socle)
15.4" x 8.0" x 14.4" / 391mm x 203mm x 366mm
Poids (non emballé)
15.2 lbs / 6.9 kg
Poids (emballé)
21.2 lbs / 9.6 kg
Température de fonctionnement
0°C to 40°C
Température de stockage
-20°C to 60°C
Humidité
Operating: 20%-80%
Storage: 10%-90%
noncondensingTemps moyen entre défaillances
50 000 heures démontrées
Options de montage
Threaded-through mounting holes, under base
Removable base, 100 mm VESA mountGarantie
3 ans
Durée de vie du rétroéclairage
Typical 30,000 hours to half brightness
Homologations et déclarations
UL, cUL, FCC, CE, TÜV-GS, VCCI, IC, C-Tick
Câbles d’alimentation
A North American power cable and a European power cable are included. For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying
Elo p/n: D20295-000.Bloc d’alimentation électrique en option
Elo p/n: E714990, available at additional cost. Power cables for power brick, also available at additional cost:
United States: Elo p/n: E61011-000
European: Elo p/n: D21505-000
United Kingdom: Elo p/n: 276875-000Câbles tactiles/vidéo
Detachable touch and video cables are included.
Périphériques en option
Lecteur de bande magnétique (Gris foncé) - Réf. Elo: E963462
