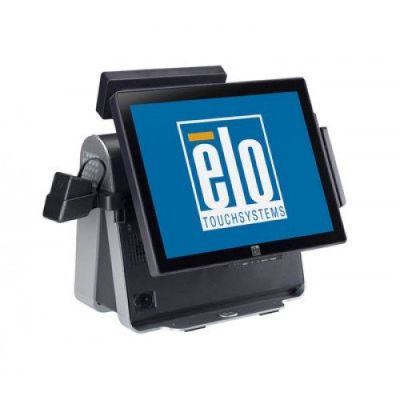

15D1 15" Touchcomputer (Discontinued April 2013)
Comment acheter

Overview

The new D-Series Rev C 15" and 17" All-in-One Touchcomputers continue to bring the same style, flexibility and functionality to point-of-sale (POS), retail and hospitality businesses as the previous versions. With a wide array of field-installable peripherals, spill-resistant sealing and a range of input/output port connection options, the D-Series rev.C models are versatile and powerful. They are designed with the future in mind, allowing easy serviceability of the main components and excellent performance utilizing the Intel Celeron E1500 2.2GHz Dual-Core Processor, just as the previous D-Series models did.

New for the Rev C models are twice the memory and twice the hard disk drive (HDD) storage capacity - now with 2GB DDR3 RAM and a 320GB advanced format HDD. Also new is a DVI-D video output port which simplifies adding a secondary, customer-facing LCD display when used with the new rear-facing LCD bracket kit.

Features
  • "Designed for touch" from the ground-up; stable base and tiltable display - Elo quality and reliability
  • Available with True-Flat AccuTouch® 5-wire resistive, and IntelliTouch® surface acoustic wave technology - Multiple touch technologies, each optimized for different operating characteristics and environments to suit diverse application requirements
  • Touchscreen sealed from the factory - Minimize damage from accidental liquid spills
  • Long-lasting product design - Elo touchcomputers have a history of being available - with an unchanged mechanical design - throughout all phases of project rollouts, and even when future spares are needed
  • Bright high contrast LCD screens - Improved screen readability
  • On-screen display controls located on the bottom rather than the front, plus lockout function for public use - Minimizes accidental or inadvertent changes to the display controls
  • Security lock receptacle - Provides fast, effective, and convenient security
  • Supports 2nd internal SATA hard disk drive - Enables extra storage capacity or disk mirroring (RAID) for data protection
  • Worldwide agency approvals - Meets local agency approvals, as required in many countries
  • Field-installable peripherals - Minimizes downtime with peripherals that are easily installed in the field rather than factory
  • Field-replaceable motherboard, power supply, display head, hard drive(s), and memory - Easy serviceability minimizes downtime
  • Excellent cable management and cables hidden from view - Prevents accidental disconnection and gives a clean, professional look
  • 5 serial ports (2 are powered 5V default/adjustable to 12V), 7 USB 2.0 ports (1x24VDC USB printer power port), Ethernet 100/10 Base-T, cash drawer port (24V default/adjustable to 12V), new DVI-D secondary display output port, 2 PS/2, audio (1 line-in, 1 line-out, 1 mic-in) - Accessible POS/POI-focused input/output ports make installation of peripherals easy
  • Clips on the back of the unit - Allow users to display customer-facing messages or advertising
  • 3-year warranty - Customer satisfaction and peace of mind

Spécifications

  • Technique

    Référence(s)

    AccuTouch (None, USB, Antiglare, Worldwide) - E328019
    AccuTouch (POSReady 2009, USB, Antiglare, Worldwide) - E409402
    AccuTouch (WinXP Pro, USB, Antiglare, Worldwide) - E126702
    AccuTouch (Win7 Pro, USB, Antiglare, Worldwide) - E772930
    AccuTouch (WinXP Pro, USB, Antiglare, Japan) - E332597
    IntelliTouch (None, USB, Antiglare, Worldwide) - E129811
    IntelliTouch (POSReady 2009, USB, Antiglare, Worldwide) - E836223
    IntelliTouch (WinXP Pro, USB, Antiglare, Worldwide) - E739901
    IntelliTouch (Win7 Pro, USB, Antiglare, Worldwide) - E125031
    IntelliTouch (WinXP Pro, USB, Antiglare, Japan) - E012981

    Couleur du boîtier

    Gris foncé

    Technologie et fonctionnalités tactiles

    AccuTouch® - Résistant à 5 fils - Touche unique
    SAW (ondes acoustiques de surface IntelliTouch®) - Touche unique

    Processeur

    Intel 2.2GHz Celeron Dual-Core E1500
    512KB L2 Cache
    800MHz System Bus

    BIOS

    AMI

    Mémoire vive (RAM)

    2GB Low-Profile 1333MHz DDR3 DIMM on 1 of 2 slots

    Disque dur

    320GB 2.5" Advanced Format (AF) SATA HDD
    Optional 2nd 320GB hard drive available

    Jeu de puces

    Intel G41 Express

    Taille de l’écran (diagonale)

    Diagonale de 15”, matrice active TFT LCD (LED)

    Boutons de commande

    Controls (bottom): menu, up, down, select, power
    Settings: brightness, contrast, phase, auto adjust, H-position, V-position, clock, sharpness, RGB, OSD H-position, OSD V-position, OSD time, OSD language, recall, power button
    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
    Lockouts: user controls

    Format d’image

    4:3

    Zone active

    12.0" x 9.0" / 304.0mm x 228.0mm

    Résolution

    1024 x 768 @ 60Hz

    Nombre de couleurs

    16.7 millions

    Luminosité (standard)

    LCD panel: 250 nits
    AccuTouch: 200 nits
    IntelliTouch: 225 nits

    Temps de réponse – total (standard)

    8 msec

    Taux de contraste

    700:1

    Angle de vision

    Horizontal: ±70° ou 140° au total / Vertical: 65°/60° ou 125° au total

    Ports E/S

    2 x PS/2 (1 Keyboard and 1 Mouse)

    Ports USB

    6 x USB2.0 Standard
    1 x 24VDC USB 2.0 Printer Power Port (can be used as standard USB 2.0 port with standard type-A USB cable).

    Ports série

    1 x RS-232 (standard)
    2 x USB-to-Serial RS-232 (standard)
    2 x USB-to-Serial RS-232 powered (5V default/12V; selectable via jumper)

    Port Ethernet

    1 x LAN RJ45 (Gigabit)

    Sans fil

    Optional USB wireless kit available (802.11b/g/n)

    Port de tiroir-caisse

    1 x cash drawer (12V/24V default; selectable via jumper)
    Compatible with the following APG models:
    MultiPRO 420 with CD-039A cable
    MultiPRO 420 with CD-039A cable

    Sortie vidéo supplémentaire

    DVI-D

    Ports audio

    1 x 3.5mm line in
    1 x 3.5mm line-out
    1 x 3.5mm mic-in

    Haut-parleurs

    Two 2W internal speakers

    Systèmes d'exploitation

    Sans système d'exploitation
    Windows XP Professional Service Pack 3 (32-bit only)
    Windows POSReady 2009
    Windows 7 Professional (32-bit only)

    Langues

    Windows XP avec 24 groupes de langues; Windows 7 avec 35 groupes de langues
    Windows POSReady 2009 – 32 Language groups

    Alimentation électrique

    Internal PSU (270W)
    AC input voltage: 100-240 VAC
    Input frequency: 47-63 Hz

    Tension d’entrée

    100-240 VAC

    Consommation électrique (standard)

    15D1 Without Peripherals: 75W
    15D1 With All Peripherals Connected: 165W

    Dimensions maximales de l’écran tactile avec socle

    13.6" x 11.3" x 8.4" / 345mm x 288mm x 212mm

    Dimensions du colis d’expédition

    17.7" x 18.7" x 13.4" / 450mm x 475mm x 340mm

    Poids (avec socle)

    22.1 lbs / 10.0 kg

    Poids (emballé)

    26.8 lbs / 12.2 kg

    Température de fonctionnement

    0°C to 35°C / 32°F to 95°F

    Température de stockage

    -20°C to 60°C / -4°F to 140°F

    Humidité

    Operating: 20% to 80%
    Storage: 5% to 95%

    Homologations et déclarations

    UL/cUL
    FCC
    Germany TUV
    Europe CE
    Europe CB
    Argentina AR S-Mark
    Russia GOST-R
    Australia C-Tick
    Japan VCCI
    Taiwan BSMI
    Korea KC
    Mexico COC

    Horloge temps réel

    Pile lithium-ion

    Temps moyen entre défaillances

    50 000 heures démontrées

    Options de montage

    Ability to secure base to tabletop or desktop; tiltable display/head unit

    Garantie

    3 ans

    Étanchéité

    Touchscreen sealed to bezel (IntelliTouch)
    Touchscreen sealed to sub-bezel (AccuTouch)
    Touchscreen sealed to LCD (all)

    Câbles d’alimentation

    North American and European power cables included

    Autres caractéristiques

    Serviceable internal components
    Threaded holes on bottom of base for secure mounting
    Kensington security lock

    Options de mise à jour

    Deuxième kit de disque dur de 320 Go (HDD)

    Options d’extension

    Optional USB wireless kit available (802.11b/g/n)
    Second HDD kit
    Memory kits

    Informations pour la commande de câbles d’alimentation CA série E

    Réf. Amérique du Nord: E042259

    Stylet IntelliTouch en option

    D82064-000, available at additional cost.

    Périphériques en option

    Écran client LCD 7 pouces - Réf. Elo: E791658 (AccuTouch®)

    Optional Accessories/Peripherals

    Second 320GB Advanced Format (AF) Hard Disk Drive (HDD)
    Second HDD/SSD Mounting Kit Only (no drive)
    Rear-Facing LCD Mounting Bracket Kit
    2GB Low-Profile DDR3 Memory DIMM Kit
    4GB Low-Profile DDR3 Memory DIMM Kit
    Single-line Barcode Reader
    Omni-directional Barcode Reader
    Magnetic Stripe Reader (MSR)
    7" 0700L Rear-Facing Customer LCD (touch - E791658 or no touch - E807955)
    Customer Display (2x20 VFD)
    Biometric Fingerprint Reader (FPR)

    Magnetic Stripe Reader (MSR)

    The MSR is a USB 2.0 device that reads all three data stripes on standard credit cards or driver's licenses conforming to ISO/ANSI standards. The MSR has foreign language capability. The MSR is powered from the USB port; no external power is needed. The MSR features are:

    Reads up to 3 tracks of information
    Bidirectional swipe reading
    Superior reading of high jitter, scratched, and worn MagStripe cards
    - Reliable for over 1,000,000 card swipes
    - Reads ISO7811, AAMVA, and most other card data formats
    - PC software makes configuration changes easy
    - Swipe speeds from 3 to 60 inches per second
    - Interfaces: USB-IDTech-HID
    - Fully supports USB 2.0
    - Part Number: E145919
