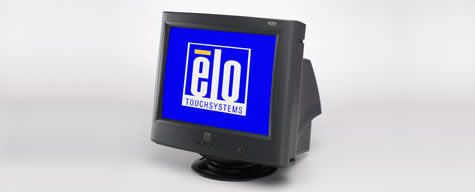

1587C 15" CRT Open Frame Touchmonitor (Discontinued November 2006)
Overview
Elo IntelliTouch® ZB touch-on-tube open-frame CRTs are the right choice for your public access or industrial application because they are easily integrated, reliable, sealed, and deliver the ultimate in picture quality, at an optimal price.
Open-frame CRTs reduce or eliminate the need for redesign by providing a much longer model life than plastic case CRTs. At the same time, they provide the reliability and ruggedness required for operation in an indoor public environment. Featuring the breakthrough Elo IntelliTouch ZB touch-on-tube technology and no overlay to break, your application will have the best picture quality and vandal resistance possible on a touch CRT. A final benefit is the watertight sealed bezel that stays in place when the cabinet front is opened.
Features
- Computer-grade digital design and video quality
- Unique IntelliTouch ZB touch-on-tube technology preserves 100% of the original brightness, picture quality, and color purity, with up to 80% less reflection than some overlays
- Super sensitive, drift free and precise touch with no parallax from an overlay
- Open-frame metal chassis keeps the CRT cooler, extending life
- Fixed outside dimensions-model life is longer than plastic-cased monitors (3D design files available)
- Bezel includes watertight 0.5 mm seal
- Rugged epoxy composite PCB material (CAM-1)
- Schematic and component-level repair manual available, plus entire electronics can be quickly replaced
- Built-in power, deflection and video test with diagnostic pin and LEDs
- Multilingual on-screen display (OSD) with long cable length for easy relocation
- Detachable video cable for easy cable harnessing
- Locking power connector
- Worldwide agency approvals
Spécifications
-
Technique
Référence(s)
IntelliTouch ZB (Antireflective, Worldwide) - A65341-000
Couleur du boîtier
Noir
Technologie et fonctionnalités tactiles
SAW sans cadre (ondes acoustiques de surface IntelliTouch®) - Touche unique
Taille de l’écran (diagonale)
Diagonale de 15”, matrice active TFT LCD (LED)
Épaisseur de l’écran
14.8" / 375 mm
Format d’image
4:3
Zone active
Horizontal: 10.6" / 270 mm
Vertical: 8.0" / 202 mmRésolution
800 x 600 at 85 Hz
Autres résolutions prises en charge
800 x 600 at 85 Hz (VESA)
640 x 480 at 60 Hz (VGA)Nombre de couleurs
16.7 millions
Dot Pitch
0.28 mm
Taux de contraste
300:1
Interface tactile
Serial
Affichage à l’écran (OSD)
Multilingual OSD
Video Bandwidth
65 MHz (~3 db)
Format vidéo d’entrée
Analog
Connecteur du signal vidéo d’entrée
Mini D-Sub 15-Pin (female)
Consommation électrique (standard)
60 W typical, 65 W max.
Alimentation électrique
100-240 VAC, 50-60 Hz
Fréquence d’entrée
Horizontal: 30-55 kHz
Vertical: 50-160 HzDimensions de l’écran (sans socle)
13.8" x 12.3" x 14.8" / 351.2 mm x 313 mm x 375 mm
Poids (non emballé)
25.8 lb / 11.7 kg
Poids (emballé)
31.3 lb / 14.2 kg
Température de fonctionnement
5°C to 55°C
Température de stockage
-20°C to 65°C
Humidité
Operating: 10% to 80%
noncondensingTemps moyen entre défaillances
50 000 heures démontrées
Autres caractéristiques
Energy save mode (less than 2 watts)
VESA DPMS
VESA DDC 1/2 B Plug and PlayGarantie
Contactez Elo
Homologations et déclarations
FCC/ICES-03 Class B, UL/cUL recognized component, TÜV Bauart, CE, VCCI, C-Tick, MPR II, DHHS, Demko
Câbles d’alimentation
A special locking power cable is required. Power cables which may be suitable are available separately: North American version (drawing MS500325 Rev B); European version (drawing MS500324 Rev B).
Câbles tactiles/vidéo
Detachable touch and video cables are included
Optional Accessories/Peripherals
Replacement Board Set: F01871-000
Open-Frame Adaptor Bracket: C51251-000. For base-mounting solutions
Square Kiosk Bezel: C57638-000
All available at additional cost.
