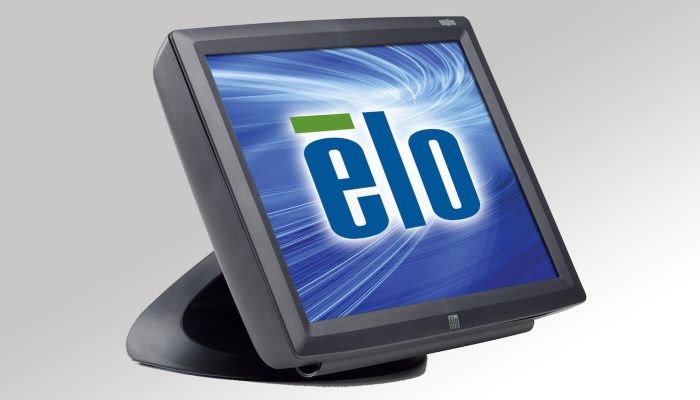

1529L 15" Touchscreen Monitor (Discontinued October 2007)
Comment acheter

Overview

The Elo 1529L touchmonitor expands the company's family of reliable, easily integrated, multifunction touch solutions and is now available with the new breakthrough Elo touch technology, Acoustic Pulse Recognition. The retail-rugged 1529L includes options for a magnetic stripe reader (MSR), biometric fingerprint reader, and a 2 x 20 vacuum fluorescent rear-facing customer display (VFD). The 1529L has been designed for touch from the ground up, with such features as spill-resistant sealing, a short or tall stable tilt base that is removable or reversible for wall mounting, connectivity incorporated within the monitor, and a choice of Elo touch technology as well as color.

Other features.
  • Higher brightness, better contrast, and wider viewing angle than most 15" LCDs
  • "Designed for touch" features such as a stable tilt base
  • Available with AccuTouch Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus), IntelliTouch Surface-Wave Technology, CarrollTouch Infrared Technology, Surface Capacitive Technology, or the newest Elo touch technology, Acoustic Pulse Recognition.
  • Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; and USB with human interface device (HID) class specification 1.1
  • Optional 20x2 USB vacuum fluorescent display (VFD) rear-facing customer display
  • Optional biometric fingerprint recognition device
  • USB hub or dual serial/USB interface available on certain configurations
  • Choice of gray or beige finish
  • Choice of short, tall, or no monitor stand. No stand version also omits the logo.
  • Single power supply for all optional devices
  • Cables hidden from user's view
  • Built-in speakers located in display head
  • Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
  • Mounting holes on base bottom for tabletop security
  • Base removable, VESA mounting option
  • Controls on the side rather than the front, plus lockout function for public use
  • Sealed touchscreen; CarrollTouch version features a seamless watertight seal due to its unique co-molded construction
  • Diagnostic LEDs for touch and video
  • Long-lasting product cycle
  • Worldwide agency approvals

Spécifications

  • Technique

    Référence(s)

    Acoustic Pulse (Worldwide) - E700641
    IntelliTouch (Worldwide) - D62751-000

    Couleur du boîtier

    Dark Gray or Beige

    Technologie et fonctionnalités tactiles

    SAW (ondes acoustiques de surface IntelliTouch®) - Touche unique
    Reconnaissance d'impulsion acoustique - Touche unique

    Taille de l’écran (diagonale)

    Diagonale de 15”, matrice active TFT LCD (LED)

    Format d’image

    4:3

    Zone active

    11.98" x 8.98" / 304mm x 228mm

    Résolution

    1024 x 768

    Autres résolutions prises en charge

    1024 x 768 at 60, 65, 70 or 75 Hz
    832 x 624 at 75 Hz
    800 x 600 at 56, 60, 72 or 75 Hz
    720 x 400 at 70 Hz
    720 x 350 at 70 Hz
    640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz

    Angle de vision

    Horizontal: ±75° or 150° total / Vertical: 75/50° or 125° total

    Nombre de couleurs

    16.2 million with dithering (8 bit)

    Luminosité (standard)

    LCD panel: 350 nits
    AccuTouch: 280 nits
    APR: 322 nits
    CarrollTouch: 322 nits
    IntelliTouch: 322 nits
    surface capacitive: 298 nits

    Temps de réponse – total (standard)

    12 msec

    Taux de contraste

    400:1

    Interface tactile

    USB: E700641
    Serial/USB (no hub): D62751-000

    Affichage à l’écran (OSD)

    OSD lockouts for power and user controls

    Commandes d’utilisation

    OSD control menu: menu, up, down, select, power
    OSD controls: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, Input select
    Languages: English, French, German, Spanish, Japanese
    OSD disable/enable: power, OSD menu

    Haut-parleurs

    Two watt/channel speakers located in display head

    Format vidéo d’entrée

    RGB analog; DVI-D

    Connecteur du signal vidéo d’entrée

    Mini D-Sub 15-Pin VGA type; DVI-D connector

    Consommation électrique (standard)

    Monitor: 20 W typical, 25 W max.
    VFD customer display: 3 W typical, 6 W max.
    USB fingerprint reader: 0.5 W typical, 1 W max.
    USB magnetic stripe reader: 0.5 W typical, 1 W max.
    2 USB external ports power when loaded: 5 W typical, 7 W max.
    Total with all possible accessories: 39 W typical, 50 W max.

    Alimentation électrique

    AC/DC input internal power supply, with jack to accept power from optional external brick; Power: 50 W max.; only AC power cable supplied; 12V power supply optional

    Tension d’entrée

    AC: 90-265 VAC, 50/60 Hz.; DC: 12.0V ± 0.75V

    Fréquence d’entrée

    Horizontal: 31-60 kHz / Vertical: 56-75 Hz

    Dimensions de l’écran (avec socle)

    13.99" x 11.27" x 10.44" / 355mm x 286mm x 265mm

    Poids (non emballé)

    14.44 lb / 6.55 kg

    Poids (emballé)

    21.16 lb / 9.60 kg

    Température de fonctionnement

    0°C to 40°C

    Température de stockage

    -20°C to 60°C

    Humidité

    Operating: 20-80%
    Storage: 5-95%
    noncondensing

    Étanchéité

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    Temps moyen entre défaillances

    50 000 heures démontrées

    Options de montage

    75 mm VESA mount
    Removable base

    Autres caractéristiques

    Energy save mode (less than 2 watts)
    2 stage DPMS
    VESA DDC Plug and Play
    Security lock receptacle

    Garantie

    3 ans

    Durée de vie du rétroéclairage

    Min 40,000 hours to half brightness

    Homologations et déclarations

    UL, cUL, FCC-A, TÜV-GS, CE, VCCI, C-Tick

    Câble d’alimentation CA

    North American and European AC power cables are included. For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying part number E540272.

    AC power cables for power brick are also available at additional cost:
    United States: Elo p/n - E042259
    Europe: Elo p/n - E690013
    United Kingdom: Elo p/n - E235317

    Bloc d’alimentation électrique en option

    The monitor may also be powered with DC voltage. An optional 12V DC power brick, part number E785134, is available at additional cost.

    Stylet IntelliTouch en option

    Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost.

    Câbles tactiles/vidéo

    All appropriate cables are included and are detachable.

    Stands, montures et kits

    Short Desktop stand (Dark gray) - Elo p/n: E252977
    Tall Desktop stand (Dark gray) - Elo p/n: E930466
    Short Desktop stand (Beige) - Elo p/n: E819036
    Tall Desktop stand (Beige) - Elo p/n: E024520
    1529L VESA Plate – Elo p/n: E295293
