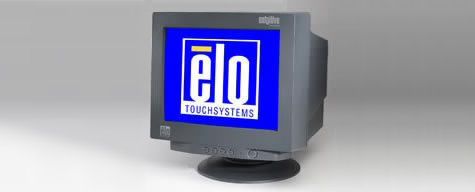

1526C 15" CRT Touchmonitor (Discontinued December 2008)
Overview
For delivering the best possible optics on a touch CRT, there is nothing better than the unique Elo IntelliTouch® ZB touch-on-tube technology. No overlay means 100% of the brightness, picture quality, and color purity are preserved, with up to 80% less reflection than the competition. The touch is super sensitive, drift free and extremely precise as you are touching even closer to the image. If you want a touch CRT, you need to look no further.
Features
- Our lowest cost touchmonitor
- Unique IntelliTouch ZB touch-on-tube technology preserves 100% of the original picture quality
- Digital on-screen display (OSD) with lockout function for public use
- Power Save function
- Rigid (removable) base
- Innovative touchscreen sealing
- Worldwide agency approvals
Spécifications
-
Technique
Référence(s)
IntelliTouch ZB (Antireflective, Worldwide) - E833965
Couleur du boîtier
Gris foncé
Technologie et fonctionnalités tactiles
SAW sans cadre (ondes acoustiques de surface IntelliTouch®) - Touche unique
Taille de l’écran (diagonale)
Diagonale de 15”, matrice active TFT LCD (LED)
Format d’image
4:3
Zone active
15.2" / 385 mm
Résolution
800 x 600 at 85 Hz
Autres résolutions prises en charge
1024 x 768 at 60, 70, 75, or 85 Hz
800 x 600 at 60, 72, 75, or 85 Hz
640 x 480 at 60, 72, 75, or 85 HzNombre de couleurs
16.7 millions
Dot Pitch
0.28 mm
Taux de contraste
300:1
Interface tactile
Dual serial/USB
Affichage à l’écran (OSD)
Digital OSD with lockout capability
Video Bandwidth
67 MHz
Format vidéo d’entrée
Analog (no proprietary video card needed)
Connecteur du signal vidéo d’entrée
Mini D-Sub 15-Pin (female)
Consommation électrique (standard)
70 W max.
Alimentation électrique
90-264 VAC, 50-60 Hz
Fréquence d’entrée
Horizontal: 30-70 kHz
Vertical: 50-160 HzPoids (sans socle)
14.3" x 12.9" x 15.2" / 362 mm x 328 mm x 385 mm
Poids (non emballé)
29 lbs / 13.0 kg
Poids (emballé)
33 lbs / 15.0 kg
Température de fonctionnement
0°C to 40°C
Température de stockage
-40°C to 60°C
Humidité
Operating: 10% to 90%
Storage: 10% to 90%
noncondensingTemps moyen entre défaillances
50 000 heures démontrées
Options de montage
Rigid (removable) base
Autres caractéristiques
VESA DDC 1/2 B Plug and Play
Garantie
2 ans
Homologations et déclarations
UL, cUL, FCC, CE, CISPR22 Class B, TÜV-GS, MPR II (ITE per IEC/EN 60950)
Câbles d’alimentation
A North American power cable and a European power cable are included.
For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number 276875-000
