1522L 15" Touchscreen Monitor (Discontinued October 2012)
Overview

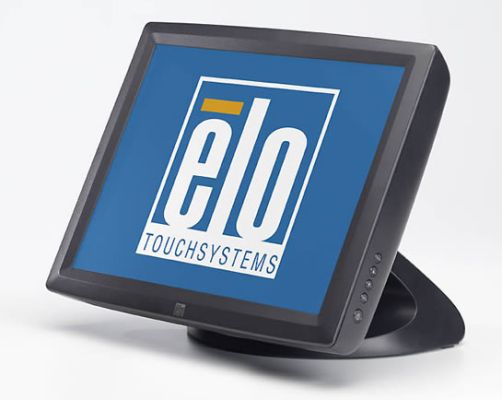

The 1522L 15" LCD desktop touchmonitor offers the same sleek design as the 1529L 15" LCD desktop model, but is more cost effective for the end user. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1522L also incorporates hidden cable management, resulting in a convenient, space saving design that makes the touchmonitor ideal for POS applications. The 1522L is offered with a choice of touch technologies: IntelliTouch® surface acoustic wave, AccuTouch® five-wire resistive, CarrollTouch Infrared, Surface Capacitive, and Acoustic Pulse Recognition. In addition, there are options for a beige or gray bezel and a short or tall stand.
Other features.
- Long lasting product cycle – enclosure controlled by Elo specifications
- Small integrated design
- A touchmonitor that can function as a desktop or wall-mountable system
- Available with Acoustic Pulse Recognition, AccuTouch Five-Wire Resistive Technology, IntelliTouch Surface-Wave Technology, CarrollTouch Infrared Technology, and Surface Capacitive Technology
- Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; and USB with human interface device (HID) class specification 1.1
- Touchscreen sealed to resist dirt, dust and splashes
- "Designed for touch" from the ground-up; stable tilt stand; cables hidden from user's view
- Controls on the side rather than the front, plus lockout function for public use
- Choice of short or tall monitor stand
- Choice of gray or beige finish
- Mounting holes on stand bottom for tabletop security
- Stand removable, VESA mounting option
- Worldwide agency approvals
- Security lock receptacle
- 3 year warranty
Spécifications
-
Technique
Référence(s)
AccuTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E136451
AccuTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E407449
AccuTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E993389
Acoustic Pulse Recognition (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E172222
Acoustic Pulse Recognition (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E317038
Acoustic Pulse Recognition (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E460428
Acoustic Pulse Recognition (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E869591
CarrollTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E195812
CarrollTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E337897
CarrollTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E576670
CarrollTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E592262
IntelliTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E626377
IntelliTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E664329
IntelliTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E889598Couleur du boîtier
Dark Gray or Beige
Technologie et fonctionnalités tactiles
AccuTouch® - Résistant à 5 fils - Touche unique
SAW (ondes acoustiques de surface IntelliTouch®) - Touche unique
Reconnaissance d'impulsion acoustique - Touche unique
CarrollTouch Infrared TechnologyTaille de l’écran (diagonale)
Diagonale de 15”, matrice active TFT LCD (LED)
Format d’image
4:3
Zone active
12.0" x 9.0" / 304mm x 228mm
Résolution
1024 x 768 at 60 Hz
Autres résolutions prises en charge
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 HzAngle de vision
Horizontal: ±70° ou 140° au total / Vertical: ±60° ou 120° au total
Nombre de couleurs
16.7 millions
Luminosité (standard)
LCD panel: 250 nits
AccuTouch: 200 nits
Acoustic Pulse Recognition: 230 nits
CarrollTouch: 230 nits
IntelliTouch: 230 nitsTemps de réponse – total (standard)
12 msec
Taux de contraste
500:1
Interface tactile
USB: E136451, E407449, E993389, E172222, E317038, E460428, E869591, E195812, E337897, E576670, E592262, E626377, E664329, E889598
Affichage à l’écran (OSD)
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, input select
Languages: English, French, German, Spanish, Japanese
Lockouts: power, user controlsHaut-parleurs
Two watt/channel speakers located in display head
Format vidéo d’entrée
Analog VGA
Connecteur du signal vidéo d’entrée
Mini D-Sub 15-Pin VGA type
Consommation électrique (standard)
30W
Alimentation électrique
Internal AC, Optional external DC (power brick)
Tension d’entrée
AC: 90-265 VAC, 50/60 Hz; DC: 12.0V ± 0.75V
Connecteur d’entrée
AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
Fréquence d’entrée
Horizontal: 31.5-60.2 kHz / Vertical: 56.3-75 Hz
Dimensions de l’écran (avec socle)
14.0" x 11.3" x 11.0" / 355mm x 286mm x 278mm
Dimensions vary with stand type and position; see drawing for tall stand dimensionsDimensions du colis d’expédition
Short stand: 17.53" x 13.00" x 14.97" / 445mm x 330mm x 380mm
Tall stand: 17.53" x 11.03" x 17.34" / 445mm x 280mm x 440mmPoids (avec socle)
Short stand: 14.3 lbs / 6.5 kg
Tall stand: 14.9 lbs / 6.8 kgPoids d’expédition (avec socle)
Short stand: 19.6 lbs / 8.9 kg
Tall stand: 20.2 lbs / 9.2 kgTempérature de fonctionnement
0°C to 40°C / 32°F to 104°F
Température de stockage
-20°C to 60°C / -4°F to 140°F
Humidité
Operating: 20-80%
Storage: 5-95%
noncondensingÉtanchéité
Touchscreen sealed to bezel
Touchscreen sealed to LCDTemps moyen entre défaillances
50 000 heures démontrées
Options de mouvement du socle
Tilt, removable, short or tall stand
Options de montage
75mm VESA mount
Autres caractéristiques
2 stage DPMS
VESA DDC Plug and Play
Security lock receptacleGarantie
3 ans
Homologations et déclarations
EMC: CE, C-Tick, FCC, VCCI (Class B)
Safety: CB, CE, cULus, S (Argentina), TÜV T MarkCâbles d’alimentation
North American and European AC power cables are included.
For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo P/N: E540272.
AC power cables for power brick are also available at additional cost:
United States: Elo P/N - E042259
Europe: Elo P/N - E690013
United Kingdom: Elo P/N - E235317Bloc d’alimentation électrique en option
The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo P/N: E137360, is available at additional cost.
Stylet IntelliTouch en option
D82064-000, available at additional cost.
Optional Acoustic Pulse Recognition (APR) Stylus Pen
E963860, available at additional cost.
Câbles tactiles/vidéo
All appropriate cables are included and are detachable.
Périphériques en option
Lecteur de bande magéntique (gris foncé) - Réf. Elo: E560084
Lecteur de bande magnétique (beige) - Réf. Elo: E895934
