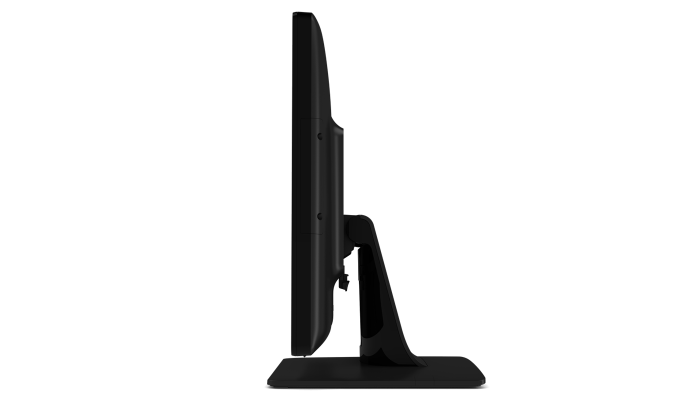

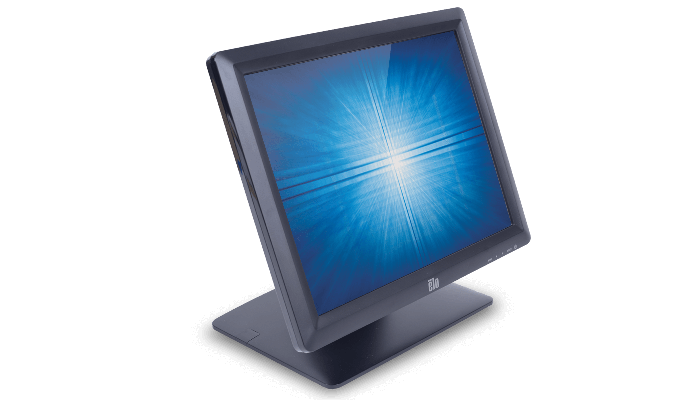

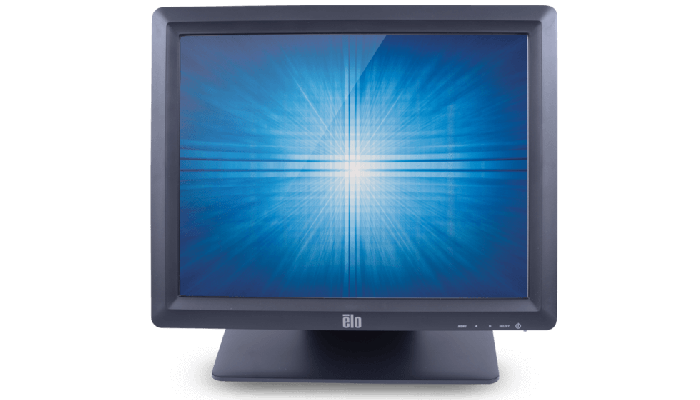

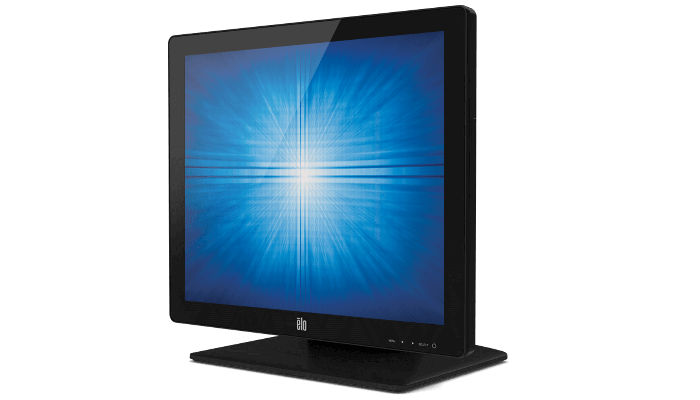

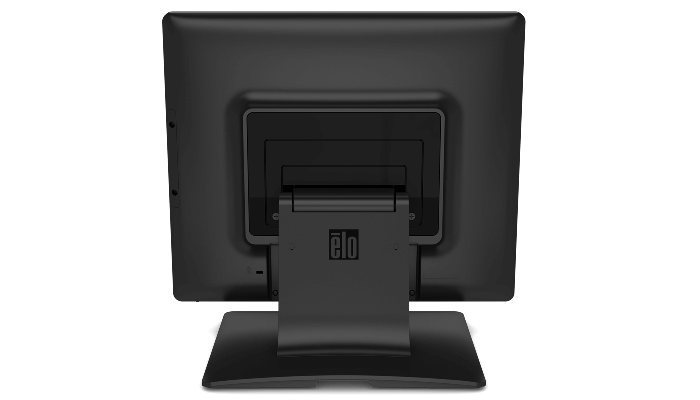

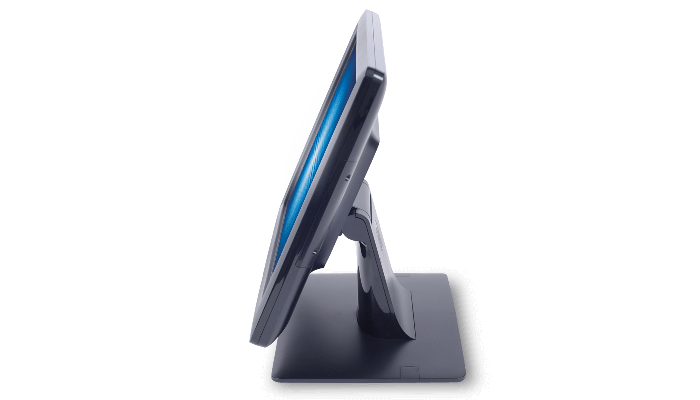

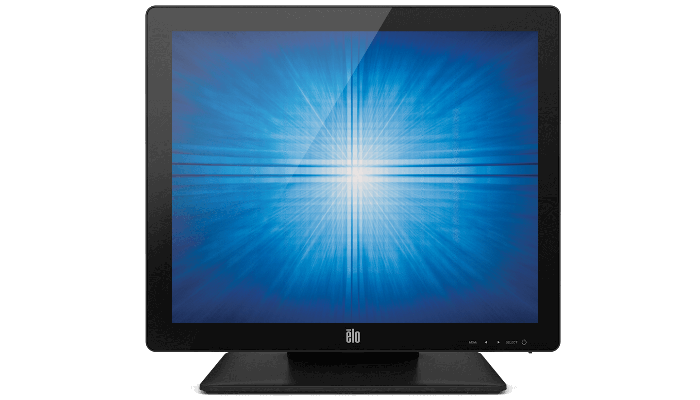

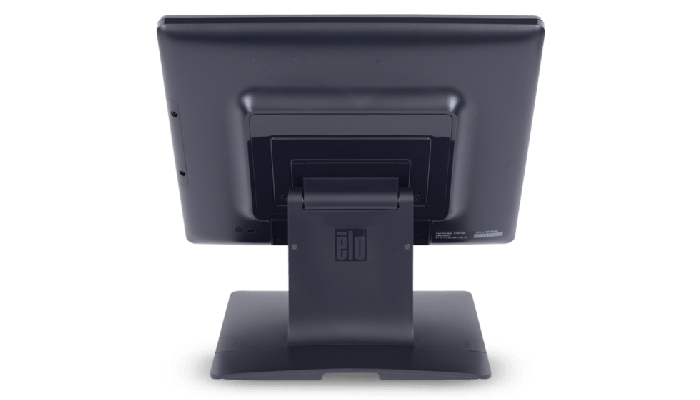

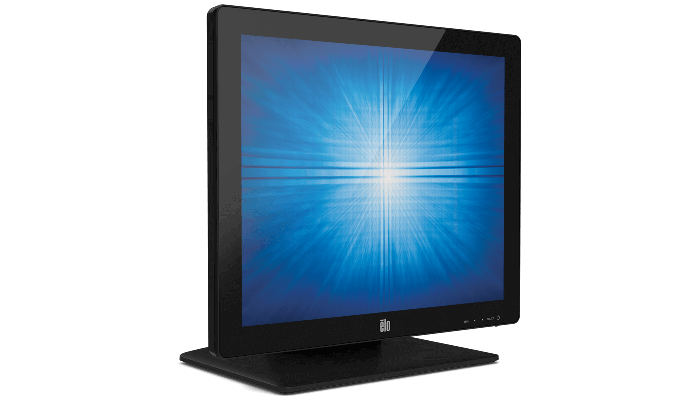

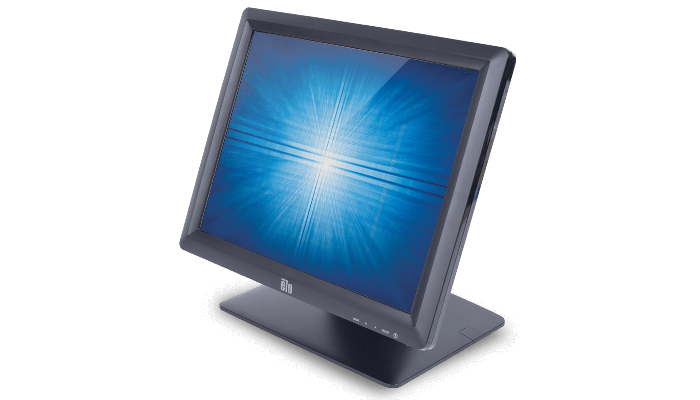

1517L 15" Touchscreen Monitor (Discontinued June 2014)
Overview
The 1517L zero-bezel touchmonitor is built to withstand the rigors of continuous public use with a rugged, “built for touch” industrial design. It delivers style and performance with a wide variety of features for a higher level of functionality. It is well suited for public venues where point-of-sale (POS), point-of-information (POI), point-of-service, shelf-level and countertop interactive digital signage, loyalty systems, kiosk information systems are found.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1517L features two leading zero-bezel touch touchscreen technologies for a smooth, easy-clean surface: AccuTouch® five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; IntelliTouch® surface acoustic wave (SAW) Z pure-glass with zero-bezel, for the ultimate in optical quality for dry retail and hospitality applications.
The 1517L Touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panels.
Features
- High performance, flexible and reliable
- Up to 1024 x 768 resolution at 60 Hz, 75 Hz
- Available with AccuTouch five-wire resistive technology with zero-bezel (activated with fingernails, gloves, credit cards, or any stylus), IntelliTouch surface acoustic wave technology for superior image quality (activated with finger or glove)
- Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; USB with human interface device (HID) class specification 1.1 and a choice of optional customer displays
- Sealed touchscreen
- USB interface
- Removable stand and VESA mounting option
- Mounting holes on stand bottom for tabletop security
- Controls on the side rather than the front, plus lockout function for public use
- Digital on-screen display (OSD)
- Worldwide agency approvals
Spécifications
-
Technique
Référence(s)
AccuTouch (Worldwide) - E247852
IntelliTouch (Worldwide) - E829550
IntelliTouch (Worldwide) - E291747Couleur du boîtier
Noir
Technologie et fonctionnalités tactiles
AccuTouch® - Résistant à 5 fils - Touche unique
SAW (ondes acoustiques de surface IntelliTouch®) - Touche uniqueTaille de l’écran (diagonale)
Diagonale de 15”, matrice active TFT LCD (LED)
Format d’image
4:3
Zone active
12.0" x 9.0" / 304mm x 228 mm
Résolution
1024 x 768
Autres résolutions prises en charge
640x480 60Hz,75Hz
720x400 70Hz
800x600 56, 60Hz,75Hz
1024x768 60Hz,75HzAngle de vision
Horizontal: ±80° ou 160° au total / Vertical: ±70° ou 140° au total
Nombre de couleurs
16.2 millions
Luminosité (standard)
LCD panel: 250 nits
IntelliTouch: 225 nits
AccuTouch: 200 nitsTemps de réponse – total (standard)
25 msec
Taux de contraste
700:1
Affichage à l’écran (OSD)
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, PowerFormat vidéo d’entrée
Analog VGA
Connecteur du signal vidéo d’entrée
Mini D-Sub 15-Pin VGA type
Consommation électrique (standard)
10W
Alimentation électrique
External DC (power brick)
Tension d’entrée
AC: 100-240 VAC, 50/60 Hz / DC: +12VDC ±5%
Connecteur d’entrée
AC: IEC 60320 C6 / DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
Fréquence d’entrée
Horizontal: 31.5-80kHz / Vertical: 56-75Hz
Dimensions de l’écran (avec socle)
14.1" x 6.8" x 12.5" / 358 mm x 173 mm x 318 mm
Dimensions vary with stand position and options selectedDimensions du colis d’expédition
17.2" x 14.6" x 7.7" / 436 mm x 370 mm x 195 mm
Poids (avec socle)
9.0 lb / 4.1 kg
Poids d’expédition (avec socle)
15.0 lb / 6.8kg
Température de fonctionnement
0°C to 40°C / 32°F to 104°F
Température de stockage
-20°C to 60°C / -4°F to 140°F
Humidité
Operating: 20%-80%
Storage: 10%-90%Étanchéité
Touchscreen sealed to bezel
Touchscreen sealed to LCDTemps moyen entre défaillances
50 000 heures démontrées
Options de mouvement du socle
Removable
Options de montage
75 mm VESA mount
Threaded-through mounting holes, under standAutres caractéristiques
Security lock receptacle
Garantie
3 ans
Homologations et déclarations
Australia C-Tick, Canada cUL, IC, China CCC, Europe CE, Japan VCCI, Korea KCC, e-Standby, Mexico CoC, Taiwan BSMI Mark, United States UL, FCC, International CB
RoHS, China RoHS, WEEE, IMERCAlimentation électrique CC de remplacement
The monitor may be powered with DC voltage. A replacement 12V DC power brick, part number E005277, is available at additional cost.
Câble d’alimentation CA
A North American and European power cables are included with the part numbers available in the regions other than EMEA. United Kingdom AC power cables are included with the part numbers available for the EMEA region.
China: Elo P/N - E030476
Japan: Elo P/N - E849156
Japan 3-pin to 2-pin adapter: Elo P/N - E351985
United Kingdom: Elo P/N - E235317
Taiwan: Elo P/N - E637694Jeu de câbles pour câbles de remplacement
Elo P/N - E378229, available at additional cost.
Câbles tactiles/vidéo
Detachable touch and video cables are included.
Périphériques en option
Lecteur de bande magnétique (Noir) - Réf. Elo : E500356
Lecteur de bande magnétique (Blanc) - Réf. Elo: E233227Stands, montures et kits
1517L VESA Plaque de montage (Blanc) - Réf. Elo : E000420
1517L VESA Plaque de montage (Noir) - Réf. Elo : E000404Socle en option
Available at additional cost.
Stand 1517L (White): Elo P/N - E483197
Elo-Stand 1517L (Black): Elo P/N - E264383
