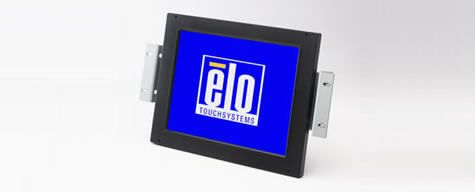

1247L 12.1" Touchscreen Monitor (Discontinued November 2006)
Overview
Elo chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo specifications. Future panel improvements are therefore possible without external changes. The monitors are available with multiple touch technologies and all feature a unique, injection-molded minibezel and watertight seal, plus a multitude of mounting options.
Other Features
- Higher brightness, better contrast, and wider viewing angle than most 12" LCDs (300 nits, 300:1, 120° x 90°)
- Up to 800 x 600 resolution at 75 Hz
- Long lasting product cycle-enclosure controlled by Elo specifications
- Future generation panels phased-in without external changes
- Integrated precision minibezel with watertight 0.5 mm seal
- Multiple mounting options including rear-mount or VESA mount
- IntelliTouch® Surface Wave Technology on pure glass for the ultimate in image quality
- Finger or gloved hand operation
- Serial touch interface
- Multilingual remote on-screen display (OSD)
- Worldwide agency approvals
- 3-D electronic design files available
Spécifications
-
Technique
Référence(s)
IntelliTouch (Antiglare, Worldwide) - E45839-000
Couleur du boîtier
Noir
Technologie et fonctionnalités tactiles
SAW (ondes acoustiques de surface IntelliTouch®) - Touche unique
Taille de l’écran (diagonale)
Diagonale de 12.1”, matrice active TFT LCD (LED)
Épaisseur de l’écran
2.36" / 60 mm
Format d’image
4:3
Zone active
9.69" x 7.27" / 246 mm x 184.5 mm
Résolution
800 x 600
Autres résolutions prises en charge
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz
640 x 350 at 70 HzAngle de vision
Horizontal: ±65° or 130° total / Vertical: 65°/40° or 105° total
Nombre de couleurs
262 000
Luminosité (standard)
LCD panel: 350 nits
IntelliTouch: 320 nitsTemps de réponse – total (standard)
40 msec
Taux de contraste
500:1
Format vidéo d’entrée
RGB analog
Connecteur du signal vidéo d’entrée
Mini D-Sub 15-Pin VGA type
Interface tactile
Dual serial/USB
Alimentation électrique
Type: External brick
Output voltage/current: 12 volts at 3.33 amps maxTension d’entrée
100-240 VAC, 50-60 Hz
Fréquence d’entrée
Horizontal: 31.5-48.1 kHz
Vertical: 56.3-75 HzAffichage à l’écran (OSD)
Remote OSD with 1.8m cable
Commandes d’utilisation
Remote OSD: menu, down, up, auto/sel
OSD: contrast, brightness, V/H position, recall default, RGB, OSD exit, sharpness, phase, clock, OSD H/V position, OSD time, auto adjust, OSD languages (English, French, German, Spanish, Japanese) and informationDimensions de l’écran (sans socle)
11.92" x 9.53" x 2.36" / 302.5 mm x 242 mm x 60 mm
Dimensions de l’écran (avec socle)
14.14" x 9.53" x 2.36" / 359 mm x 242 mm x 60 mm
Poids (non emballé)
8.8 lbs / 4 kg
Poids (emballé)
13.2 lbs / 6.0 kg
Température de fonctionnement
0°C to 40°C
Température de stockage
-20°C to 60°C
Humidité
Operating: 20%-85%
Storage: 5%-95%
noncondensingOptions de montage
75 mm VESA mount
Mounting brackets included
Rear mount through bezel or with included bracketsAutres caractéristiques
Energy save mode (less than 2 watts)
2 stage DPMS
VESA DDC Plug and PlayDurée de vie du rétroéclairage
Minimum 50,000 hours to half brightness
Garantie
3 ans
Homologations et déclarations
UL/cUL (*recognized component), FCC, TÜV-Bauart, CE, VCCI, C-Tick
Câbles d’alimentation
A North American power cable and a European power cable are included.
For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number 276875-000.Câbles tactiles/vidéo
Detachable touch and video cables are included
