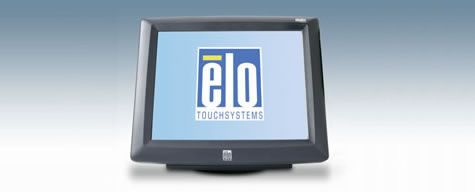

1229L 12" Touchscreen Monitor (Discontinued August 2007)
Overview
The 1229L multifunction touchmonitor may be ordered with up to three integrated peripherals, including an ergonomically-placed magnetic stripe reader (MSR), biometric fingerprint recognition device, and a rear-facing customer display. All are incorporated into the monitor housing and designed to flow with its elegant styling. Available with a choice of touch technologies, the 1229L is fully configurable for a variety of applications in the retail, hospitality, medical, gaming, and amusement markets where its compact design efficiently saves valuable work space as well as minimizing connections.
Other features.
- Higher brightness, better contrast, and wider viewing angle than most 12" LCDs
- "Designed for touch" features such as a stable tilt base
- Available with AccuTouch® Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus) or, for the ultimate in optics, IntelliTouch® Surface-Wave Technology, Surface Capacitive Technology or CarrollTouch Infrared Technology
- Optional ergonomic 3 stripe MSR available in three versions: USB with keyboard emulation; USB with human interface device (HID) class specification 1.1; and serial, which supports OPOS. OPOS is only supported in serial version
- Optional rear-facing customer display
- Optional biometric fingerprint recognition device
- Integrated USB hub with two available USB connections. Also allows a single USB cable to carry the touch signal, MSR and fingerprint data, and output to the customer display. The serial version has cables/external connectors to carry the touch and MSR data.
- Single power supply for all optional devices
- Cables hidden from user's view
- Built-in speakers located in display head
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Mounting holes on base bottom for tabletop security
- Base removable, VESA mounting option
- Controls on the side rather than the front, plus lockout function for public use
- Sealed touchscreen; CarrollTouch version features a seamless watertight seal due to its unique co-molded construction
- Diagnostic LEDs for touch and video
- Long-lasting product cycle
- Worldwide agency approvals
Spécifications
-
Technique
Référence(s)
AccuTouch (Serial, Antiglare, Worldwide) - 839902-000
Couleur du boîtier
Gris foncé
Technologie et fonctionnalités tactiles
AccuTouch® - Résistant à 5 fils - Touche unique
Taille de l’écran (diagonale)
Diagonale de 12.1”, matrice active TFT LCD (LED)
Format d’image
4:3
Zone active
9.69" x 7.27" / 246 mm x 184.5 mm
Résolution
800 x 600 at 60 Hz
Autres résolutions prises en charge
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 HzAngle de vision
Horizontal: ±65° or 130° total / Vertical: 50°/45° or 95° total
Nombre de couleurs
16.2 million with dithering (6 bit)
Luminosité (standard)
LCD panel: 350 nits
AccuTouch: 287 nitsTemps de réponse – total (standard)
45 msec
Taux de contraste
450:1
Interface tactile
Serial
Affichage à l’écran (OSD)
OSD lockouts for power and user controls
Commandes d’utilisation
OSD control menu: menu, up, down, select, power
OSD controls: contrast, brightness, V-position, H-position, recall defaults RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, resolution
OSD languages: English, French, German, Spanish, Japanese
OSD disable/enable: power, OSD menuHaut-parleurs
Two watt/channel speakers located in display head
Format vidéo d’entrée
RGB analog
Connecteur du signal vidéo d’entrée
Mini D-Sub 15-Pin VGA type
Consommation électrique (standard)
Monitor: 20 W typical, 25 W max.
VFD customer display: 3 W typical, 6 W max.
USB fingerprint reader: 0.5 W typical, 1 W max.
USB magnetic stripe reader: 0.5 W typical, 1 W max.
2 USB external ports power when loaded: 5 W typical, 7 W max.
Total with all possible accessories: 29 W typical, 40 W max.Alimentation électrique
External brick
Output voltage/current: 12 VDC at 4.0 amps max.Tension d’entrée
100-240 VAC, 50-60 Hz
Fréquence d’entrée
Horizontal: 31.5-48 kHz / Vertical: 56.3-75 Hz
Dimensions de l’écran (avec socle)
13.9" x 11.6" x 11.8" / 353mm x 295mm x 300mm
Poids (non emballé)
11.9 lbs / 5.4 kg
Poids (emballé)
19.8 lbs / 9 kg
Température de fonctionnement
0°C to 40°C
Température de stockage
-20°C to 60°C
Humidité
Operating: 20-80%
Storage: 5-95%
noncondensingÉtanchéité
Touchscreen sealed to bezel
Touchscreen sealed to LCDTemps moyen entre défaillances
50 000 heures démontrées
Options de montage
75 mm VESA mount
Removable base
Optional stability plateAutres caractéristiques
Energy save mode (less than 2 watts)
2 stage DPMS
VESA DDC Plug and Play
Security lock receptacleGarantie
3 ans
Durée de vie du rétroéclairage
Min 50,000 hours to half brightness
Homologations et déclarations
UL, cUL, FCC, TÜV-GS, CE, VCCI, C-Tick
Câbles d’alimentation
A North American power cable and a European power cable are included.
For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying - Elo p/n: 276875-000.Bloc d’alimentation électrique en option
Elo p/n: E137360, available at additional cost.
Stylet IntelliTouch en option
D82064-000, available at additional cost.
Câbles tactiles/vidéo
All appropriate cables are included and are detachable. Serial versions include an RJ45 to DB9 serial conversion cable.
Stability Plate
Mounts to the pedestal of the monitor to increase stability. Elo p/n: C41696-000, available at additional cost.
